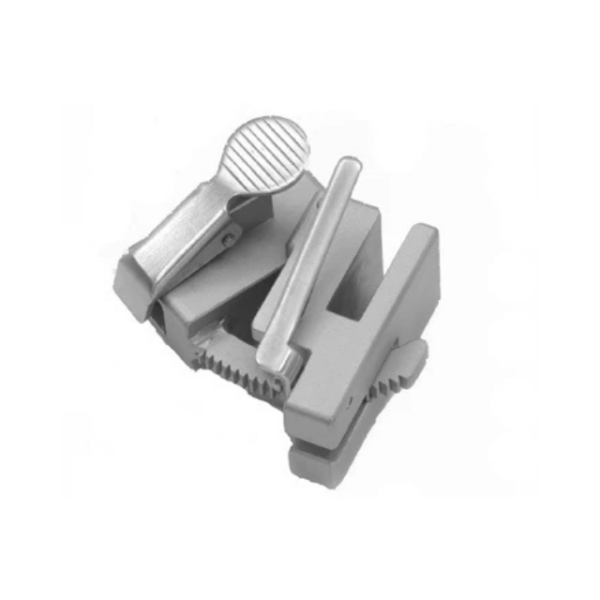

Bookwalter Tilt Ratchet

is an advanced blade-mounting mechanism that connects surgical retractor blades to a Bookwalter ring frame. Unlike standard fixed-plane ratchets that only pull tissue in a single horizontal vector, the Tilt Ratchet incorporates a tilting joint that allows surgeons to angle blades both upward and outward. This multi-directional adjustment capability enables operating room teams to lift abdominal walls, clear bony overhangs, and expose deep retroperitoneal structures that remain obstructed under single-axis retraction.

Constructed with an integrated tilt control housing, the mechanism allows precise angular positioning of the attached blade shaft. After sliding the notched blade into the ratchet drive, surgical personnel can adjust both the lateral retraction distance and the tilt angle independently. Elevating the distal tip of the blade upward while pulling tissue outward creates a three-dimensional operative field, improving visualization during deep abdominal, pelvic, or urologic procedures.

An integrated quick-release lever allows immediate tension modification, blade repositioning, or fast disassembly at the conclusion of surgery. Depressing the release lever disengages the internal locking pawl from the blade shank, allowing the blade to slide free without removing the ratchet body from the ring frame. This mechanical control allows surgical staff to modify tissue elevation incrementally throughout extended operations.

This replacement part is manufactured to standard Bookwalter-style dimensions, allowing immediate integration into existing hospital retractor system inventories. Central sterile processing departments can clean, inspect, and autoclave the ratchet using standard stainless steel instrument care protocols. Sourcing individual replacement components enables healthcare facilities to maintain complete retractor trays in active service without purchasing full system assemblies.

Key Features

• Exact Component Identification: The Bookwalter Tilt Ratchet provides multi-directional (upward and outward) blade elevation and clamping along Bookwalter ring frames.

• Multi-Angle Tilting Mechanism: Features an adjustable tilting joint that permits angular blade orientation to elevate abdominal walls and expose deep cavity structures.

• One-Handed Ratcheting Drive: Allows operating room staff to advance and lock retractor blades incrementally using a single hand during setup.

• Integrated Quick-Release Lever: Includes a thumb-operated release lever for fast blade removal, angle readjustment, or tension reduction.

• Positive-Locking Pawl System: Engages blade shaft notches firmly to prevent accidental slippage under heavy tissue resistance or variable lifting angles.

• Surgical-Grade Stainless Steel: Forged from solid non-magnetic stainless steel to withstand high mechanical loads and resist surface pitting, corrosion, and wear.

• Universal Bookwalter Compatibility: Engineered to standard Bookwalter-style tolerances for full interchangeability with existing hospital ring frames, field posts, and retractor blades.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments without joint binding or spring degradation.

Compatibility

The Bookwalter Tilt Ratchet is engineered for compatibility with standard Bookwalter retractor system components, including:

• Solid oval, hinged segmented, small round, and notched perineal ring frames

• Standard Balfour, Kelly, Malleable, Harrington, Deaver, and specialized Bookwalter blades

• Table-mounted support frameworks comprising Field Posts, Post Couplers, and Horizontal Flex Bars

• Standard Bookwalter Retractor Parts across general, urologic, gynecologic, and pelvic surgery sets

Common Surgical Applications

The Bookwalter Tilt Ratchet serves as a primary multi-directional blade-holding mechanism within a table-mounted retractor system across multiple disciplines:

• General Surgery: Lifts abdominal walls and holds visceral blades during open exploratory laparotomies, complex ventral hernia repairs, and bowel resections.

• Urology: Elevates rib margins and abdominal walls during open radical nephrectomies, retroperitoneal dissections, and radical cystectomies.

• Gynecology: Provides upward and outward traction on pelvic margins during open abdominal hysterectomies, myomectomies, and deep pelvic staging operations.

• Colorectal Surgery: Angles blades to expose deep pelvic structures during colectomies, proctectomies, and low anterior resections.

• Hepatobiliary Surgery: Elevates the costal arch and holds liver tissue clear during open cholecystectomies and hepatic dissections.

• Vascular Surgery: Maintains multi-directional wall elevation during open abdominal aortic aneurysm (AAA) repairs and bypass procedures.

• Bariatric Surgery: Lifts heavy tissue layers upward and outward over deep abdominal cavities during open bariatric interventions.

Practical Benefits for Healthcare Facilities

• Multi-Directional Exposure Control: Provides both upward lifting and outward pulling forces, improving surgeon visualization compared to single-direction self-retaining retractors.

• Cost-Effective Maintenance: Replacing individual missing or worn tilt ratchets restores full set functionality without requiring capital expenditure for complete new retractor systems.

• Inventory Compatibility: Standardized dimensions allow immediate deployment alongside a hospital’s existing stock of retractor rings and blades.

• Reliable Tissue Elevation: Heavy-duty internal locking components prevent blade movement or slipping under variable angular loads.

• Simplified Sterile Processing: Open-body mechanical structure allows straightforward pre-cleaning, automated washing, and standard autoclave packaging.

• Reduced Operating Room Downtime: Keeping spare tilting ratchets on hand prevents surgical delays caused by incomplete or damaged retractor trays.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Lead Time: Average production lead time of 12–16 days for standard fulfillment

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Custom Manufacturing: OEM and private-label production capabilities supporting custom specifications for medical device brands

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for general, urologic, gynecologic, and small incision surgery.

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, horizontal flex bars, and Standard Ratchet mechanisms.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, and Deaver blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What is the Bookwalter Tilt Ratchet?

The Bookwalter Tilt Ratchet is a stainless steel clamping mechanism that attaches to a Bookwalter ring frame. It holds retractor blades securely while allowing surgical staff to tilt the blade upward and outward for multi-directional tissue retraction.

How does a Tilt Ratchet differ from a Standard Ratchet?

A Standard Ratchet pulls tissue in a single linear plane parallel to the ring frame. A Tilt Ratchet incorporates an adjustable hinge that allows the blade shaft to angle upward away from the horizontal plane, providing three-dimensional cavity exposure.

What is the advantage of upward and outward retraction?

Tilting the retractor blade upward lifts the abdominal wall or rib cage while pulling tissue outward. This multi-directional traction expands deep surgical fields and clears anatomical structures that block single-axis retractors.

Is this tilt ratchet compatible with standard Bookwalter systems?

Yes. It is manufactured to standard Bookwalter-style specifications, making it fully compatible with standard Bookwalter-style ring frames and notched retractor blade shanks.

Can I replace only the tilt ratchet without buying a complete system?

Yes. This component is sold individually, allowing facilities to replace lost, damaged, or worn tilt ratchets without purchasing an entirely new retractor system.

Is the Bookwalter Tilt Ratchet reusable and autoclavable?

Yes. Manufactured from surgical-grade stainless steel, the ratchet is 100% reusable and fully autoclavable using standard hospital steam sterilization cycles.

How can I request pricing and delivery information?

Hospitals, medical distributors, and procurement managers can request formal B2B price quotations, bulk discount details, and shipping timelines through our Request a Quote page or by contacting our team via our Contact Support page.
