Bookwalter GYN Magrina Pelvic Surgery Retractor System

Achieve uncompromised, stable visualization during complex pelvic floor interventions and deep vaginal procedures requires holding instrumentation that adapts specifically to perineal anatomical access. The Bookwalter GYN Magrina Pelvic Surgery Retractor System anchors directly to standard operating table rails to provide surgical teams with hands-free, self-retaining exposure throughout gynecological, pelvic, and vaginal operations. By maintaining constant, precise tissue retraction without depending on continuous manual holding from assistant staff, this system helps minimize physical strain in the operating suite while keeping the surgical line-of-sight clear.

Gynecologists, pelvic surgeons, and women’s healthcare facilities rely on this specialized setup within our broader Bookwalter Retractor Systems line because it introduces key functional advancements over traditional vaginal systems. Unlike conventional setups, this configuration positions the segmented perineal ring facing upward, facilitating optimal placement and elevation for lateral, anterior, and posterior retractor blades.

Central to this setup is its Rotating Tilt Ratchet mechanisms featuring Ring Retention Technology, engineered specifically to prevent ratchets and attached components from accidentally disengaging and becoming non-sterile during surgery. Facilities can also source standalone replacement components and specialized blades from our Bookwalter Retractor Blades and Bookwalter Retractor Parts collections. Manufactured directly by Retractor Maker to standard Bookwalter-style dimensions, this complete set offers medical supply partners and hospital purchasing departments a highly reliable, high-precision surgical asset.

Key Features

• Table-Mounted Self-Retaining Framework: Clamps firmly to side rails via a 12-inch field post and coupler to maintain rigid frame stability throughout complex pelvic dissections.

• Upward-Facing Notched Perineal Ring: Positions the notched ring frame facing upward for optimized placement, clearance, and angle adjustment of lateral, anterior, and posterior blades.

• Rotating Tilt Ratchets with Ring Retention: Features specialized rotating tilt mechanisms designed with Ring Retention Technology that locks ratchets onto the frame perimeter, preventing accidental disengagement and sterility breach.

• Rapid Intraoperative Setup & Repositioning: Streamlines blade attachment and angle changes once the surgical incision is made, improving operating room efficiency.

• Precise Multi-Directional Tissue Retraction: Combines specialized vaginal lateral blades, a vaginal posterior blade, and Deaver blades for gentle, targeted pelvic organ separation.

• Horizontal Flex Bar Integration: Enables smooth, multi-jointed positioning and elevation adjustments relative to operating table rails.

• Autoclavable Stainless Steel Build: Constructed entirely from high-grade, non-magnetic stainless steel engineered for repeated autoclave cycles and long-term durability.

• Compartmentalized Sterilization Box: Supplied in a dedicated sterilization container for safe transit, organized tray counting, and efficient processing.

Surgical Applications

The Bookwalter GYN Magrina Pelvic Surgery Retractor System is engineered specifically for procedures requiring stable, multi-angle tissue exposure during open and vaginal pelvic operations, including:

• Gynecological Surgery: Delivers steady abdominal and pelvic tissue elevation during open hysterectomies, myomectomies, and deep pelvic dissections.

• Pelvic Surgery: Provides hands-free, clear visualization during complex retroperitoneal and pelvic wall dissections.

• Vaginal Surgery & Vaginal Hysterectomy: Holds vaginal walls open effectively during vaginal hysterectomies, cuff closures, and vaginal vault suspensions.

• Pelvic Floor Reconstruction & Urogynecology: Supports stable clearance during apical suspension, sacrospinous ligament fixation, and complex pelvic floor repairs.

• Pelvic Organ Prolapse Repair: Maintains clear, uninterrupted access throughout cystocele, rectocele, and enterocele surgical corrections.

• Anterior & Posterior Colporrhaphy: Enables precise tissue flap holding and suturing during anterior and posterior vaginal wall repairs.

• Women’s Health & Pelvic Reconstructive Surgery: Facilitates optimal visualization across specialized inpatient and ambulatory pelvic reconstructive interventions.

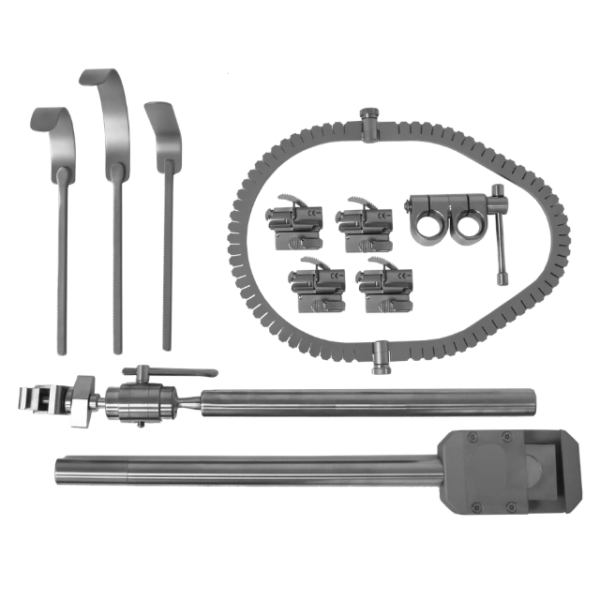

Included Components

Component Name	Dimensions	Quantity Included
Field Post	12″ (30 cm)	1
Post Coupler	Standard	1
Horizontal Flex Bar	Standard Multi-Jointed	1
Perineal Ring with Notches	9½″ × 14½″ (24.1 × 36.8 cm)	1
Rotating Tilt Ratchet	Standard with Ring Retention	4
Vaginal Lateral Blades	1″ × 3″ (2.5 × 7.6 cm)	2
Deaver Blade	1″ × 3½″ (2.5 × 8.9 cm)	1
Deaver Blade	1″ × 5″ (2.5 × 12.7 cm)	1
Vaginal Posterior Blade	1″ × 4½″ (2.5 × 11.4 cm)	1
Sterilization Box	Protective Case	1

Practical Benefits for Healthcare Facilities

• Enhanced Intraoperative Sterility Protection: Ring Retention Technology keeps ratchets anchored to the ring, eliminating the risk of components slipping off the frame onto non-sterile surfaces.

• Faster Procedural Workflows: Rotating tilt mechanisms allow surgical assistants to reposition blades and modify tension rapidly without disassembling frame connections.

• Ergonomic Upward Ring Geometry: The upward-facing perineal frame maintains clear clearance around the perineum, giving the surgeon an unobstructed working area.

• Streamlined Central Sterile Processing: The compartmentalized storage box simplifies pre-operative counting, washing, inspection, and autoclaving workflows for processing staff.

• Cost-Effective System Longevity: Standardized component dimensions allow healthcare facilities to replace individual worn ratchets or add extra blades without purchasing complete new sets.

Why Choose Retractor Maker

Retractor Maker is a specialized medical device manufacturer producing surgical retractors for hospitals, surgical centers, and medical distributors worldwide.

• Magrina GYN Specialization: Configured specifically for specialized pelvic and vaginal procedures requiring rotating tilt ratchets, upward ring orientation, and retention technology.

• Standard Compatibility: Manufactured to standard Bookwalter-style dimensions for seamless integration with existing hospital retractor inventory.

• Complete Component Availability: Standalone replacement blades, rotating tilt ratchets, and mounting bars available separately to support long-term facility maintenance.

• OEM & Private Labeling: Dedicated manufacturing capabilities supporting private labeling and custom configuration requests for global distributors.

• Established Supply Operations: Founded in 2023 with a 50+ technical workforce, 500+ satisfied clients, a 12–16 day average lead time, and full export documentation.

Looking for Additional Surgical Solutions?

Browse our complete catalog of surgical retractors on our main manufacturing site. For facilities performing cranial operations or delicate neurosurgical procedures requiring specialized holding arms, explore our dedicated Leyla Retractor line for neurosurgical applications.

Frequently Asked Questions (FAQs)

What is the Bookwalter GYN Magrina Pelvic Surgery Retractor System?

It is a table-mounted, self-retaining surgical retractor system equipped with an upward-facing notched perineal ring and Rotating Tilt Ratchets with Ring Retention Technology, engineered for open gynecological, pelvic, and vaginal procedures.

What are the advantages of Rotating Tilt Ratchets with Ring Retention Technology?

Ring Retention Technology locks the ratchet onto the perineal ring perimeter, preventing the mechanism and attached blades from accidentally slipping off the frame. This protects surgical sterility and enables smooth, 360-degree rotation for rapid blade angle adjustments.

Why is the perineal ring positioned facing upward in this system?

Positioning the notched perineal ring facing upward optimizes the angle of approach for lateral, anterior, and posterior retractor blades, keeping hardware bulk elevated and out of the primary surgeon’s working field during pelvic procedures.

Which gynecological procedures commonly use this system?

This system is widely used in vaginal hysterectomies, pelvic floor reconstructions, pelvic organ prolapse repairs, anterior and posterior colporrhaphy, open hysterectomies, and deep pelvic reconstructive surgeries.

Can replacement blades and ratchets be ordered separately?

Yes. Healthcare facilities and supply distributors can source individual components in our Bookwalter Retractor Blades and Bookwalter Retractor Parts sections as facility needs expand.

How can hospitals request pricing and delivery information?

Formal B2B pricing, volume discounts, and shipping estimates can be requested through our Request a Quote page or by reaching out directly to our sales team via our Contact Us page or Product Catalogue section.
