Bookwalter GYN Retractor System
perform complex pelvic floor interventions and vaginal access procedures requires steady, uninterrupted visualization within a compact surgical field. The Bookwalter GYN Retractor System attaches directly to standard operating room table rails to give surgical teams hands-free, self-retaining tissue exposure during open gynecological and vaginal operations. By maintaining controlled tension on surrounding soft tissues without requiring manual holding from assistant staff, this system helps reduce physical fatigue in the operating room while maintaining a clear line-of-sight for the primary surgeon.
Women’s hospitals, surgical centers, and gynecology departments rely on this specialized setup because it addresses the unique positioning demands of perineal and pelvic approaches. The notched perineal ring frame provides multiple secure anchoring points around the surgical site, allowing ratchets and blades to be locked in at precise angles. Paired with variable-angle tilt ratchets, specialized lateral and posterior vaginal blades, and Deaver blades, the assembly enables surgical teams to maintain reliable exposure throughout extended procedures. Manufactured directly by Retractor Maker, this complete setup offers medical distributors and hospital procurement teams a durable, standardized solution for specialized gynecological surgical suites.
Key Features
-
Table-Mounted Architecture: Clamps securely to operating table rails to keep the retractor frame firmly anchored throughout surgical maneuvers.
-
Notched Perineal Ring Frame: Features perimeter notches that allow surgical personnel to lock tilt ratchets at precise positions around the perineal field.
-
Horizontal Positioning Bar: Extends over the surgical area to allow accurate height and depth adjustment when operating from a perineal approach.
-
Multi-Angle Tilt Ratchets: Provides fine control over blade elevation and directional hold to maintain clear tissue retraction within deep pelvic areas.
-
Specialized Vaginal and Deaver Blades: Includes dedicated lateral, posterior, and curved Deaver blades designed specifically for pelvic organ holding and soft tissue separation.
-
Compartmentalized Sterilization Box: Keeps all frame components, ratchets, and specialized blades organized during transport, counting, and autoclave processing.
Surgical Applications
-
Gynecology: Delivers steady abdominal and pelvic tissue exposure during open hysterectomies and myomectomies.
-
Vaginal Surgery: Holds vaginal walls open effectively during vaginal hysterectomies and vaginal wall repair procedures.
-
Pelvic Surgery: Provides stable, unobstructed clearance during complex deep pelvic dissections.
-
Urogynecology: Maintains steady visualization throughout anterior and posterior colporrhaphy and pelvic floor reconstruction operations.
-
Women’s Health Surgery: Supports hands-free surgical field visibility across various specialized inpatient and ambulatory pelvic procedures.

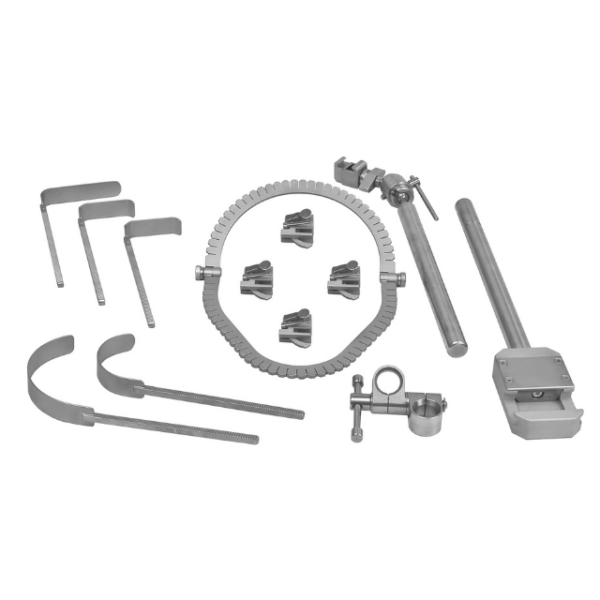

Included Components
| Component Name |
Dimension / Specification |
Quantity Included |
| Field Post |
12″ (30 cm) |
1 |
| Post Coupler |
Standard |
1 |
| Horizontal Bar |
Standard |
1 |
| Tilt Ratchet Mechanisms |
Multi-Angle |
4 |
| Perineal Ring with Notches |
9½″ × 14½″ (24.1 × 36.8 cm) |
1 |
| Vaginal Lateral Blades |
1″ × 3″ (2.5 × 7.6 cm) |
2 |
| Vaginal Posterior Blade |
1″ × 4½″ (2.5 × 11.4 cm) |
1 |
| Deaver Blade |
1″ × 5″ (2.5 × 12.7 cm) |
1 |
| Deaver Blade |
1″ × 3½″ (2.5 × 8.9 cm) |
1 |
| Sterilization Box |
Protective Case |
1 |
Practical Benefits for Healthcare Facilities
-
Improved Access During Vaginal Procedures: The low-profile notched ring and dedicated horizontal bar keep bulk hardware out of the surgeon’s working field.
-
Accurate Instrument Positioning: Secure ratchet notches prevent blade slippage, allowing surgical assistants to set and maintain precise tissue elevation.
-
Streamlined Central Sterile Processing: Structured tray organization simplifies pre-operative counting, washing, inspection, and autoclaving workflows for processing staff.
-
Cost-Effective Tray Management: Universal joint sizes allow facilities to replace individual worn parts or add extra blades without replacing the complete assembly.
-
Hands-Free Operating Room Efficiency: Rigid table mounting holding tissue open allows assistant surgeons to focus on primary procedural tasks rather than holding manual retractors.
Why Choose Retractor Maker
Retractor Maker is a reputable manufacturer and supplier specializing in surgical retractors for medical procedures. We manufacture high-quality retractors using modern production facilities and experienced professionals.
-
Established: 2023
-
Workforce: 50+ surgical instrument professionals
-
Satisfied Customers: 500+ healthcare facilities and distributors worldwide
-
Average Lead Time: 12–16 days for standard fulfillment
-
Quality Assurance: Strict quality control and management procedures on every system
-
Global Supply: Worldwide shipping with complete export documentation
Looking for additional surgical solutions?
Browse our complete line of surgical retractors on our corporate site. For healthcare facilities performing cranial or spinal operations, explore our specialized Leyla Retractor System line for neurosurgical applications.
Frequently Asked Questions
What is the Bookwalter GYN Retractor System designed for?
It is a table-mounted, self-retaining surgical retractor engineered specifically for open gynecological, pelvic, and vaginal surgeries to provide steady, hands-free site exposure.
What is the purpose of the notched perineal ring?
The notched perimeter of the perineal ring frame provides fixed locking points around the surgical site, allowing tilt ratchets to hold blades securely without shifting during tissue retraction.
What blades are included in this complete GYN set?
The set includes five specialized surgical blades: 2 Vaginal Lateral Blades (1″ × 3″), 1 Vaginal Posterior Blade (1″ × 4½″), and 2 Deaver Blades (1″ × 5″ and 1″ × 3½″).
Is this system compatible with other standard Bookwalter components?
Yes. As a direct manufacturer, Retractor Maker builds all components to standard dimensions, making them fully compatible with standard Bookwalter Retractor field posts, ratchets, and ring frames across our broader Bookwalter Retractor Systems line.
Can additional blades or replacement hardware be ordered separately?
Yes. Hospitals and medical supply managers can source standalone items from our Bookwalter Retractor Blades and Bookwalter Retractor Parts sections as facility needs expand.
How can I request a formal quotation or lead time estimate?
Formal B2B pricing, volume discounts, and shipping estimates can be requested through our Request a Quote page or by reaching out directly to our sales team.
Request Your B2B Quotation
Ready to equip your gynecology suites with factory-direct retractor systems? Retractor Maker provides prompt quotations, custom ordering support, and reliable international fulfillment for hospitals, surgical centers, and medical device distributors worldwide.
