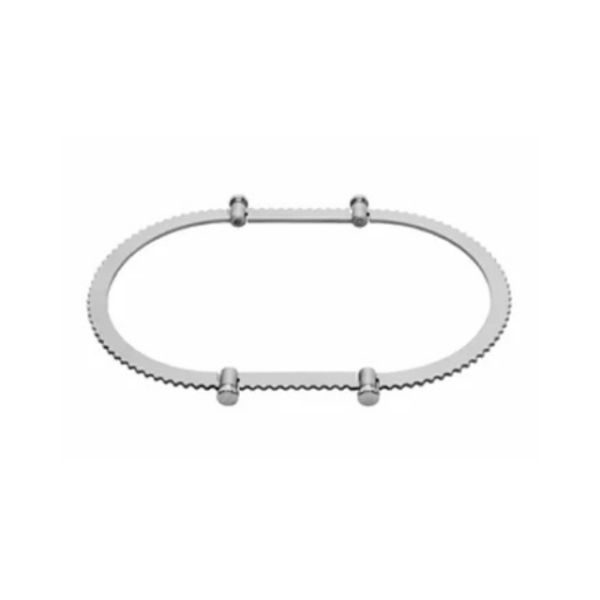

Bookwalter Oval Segmented Ring

is an articulated perimeter support frame designed to suspend ratchets and retractor blades over the operating site. Unlike one-piece solid rings that maintain a fixed horizontal plane, this segmented ring incorporates two mechanical articulation joints. These hinge points allow surgical personnel to angle the ring halves independently, conforming the frame to curved patient contours, sloping abdominal walls, or asymmetric surgical exposures.

Beyond its angular flexibility, the ring frame utilizes interchangeable straight side segments that allow surgical teams to alter its overall length. The sides can be swapped with different segment lengths to expand or reduce the operative aperture based on procedural demands. Additionally, the assembly can be configured as a partial or open ring for select procedures where an arm or frame segment must be omitted to provide unobstructed surgical access or clear line-of-sight for imaging equipment.

Available in three distinct size configurations, the oval segmented ring adapts to diverse surgical approaches and patient anatomies:

• Small Oval Segmented Ring (8.5″ × 14″ / 21.6 × 35.6 cm): Designed for compact abdominal surgical fields, pediatric interventions, or procedures requiring localized perimeter retraction.

• Medium Oval Segmented Ring (10.5″ × 19″ / 26.7 × 48.3 cm): The standard workhorse size for general abdominal surgery, providing broad coverage for midline, paramedian, and subcostal incisions.

• Large Oval Segmented Ring (12.5″ × 19″ / 31.8 × 48.3 cm): Configured for deep abdominal or high-BMI patient procedures requiring maximum frame clearance and wide multi-blade attachment points.

This replacement part is manufactured to standard Bookwalter-style dimensions, allowing direct integration into existing hospital retractor system inventories. Central sterile processing departments can disassemble, clean, inspect, and autoclave the articulated stainless steel components using standard hospital washing and steam sterilization protocols. Sourcing standalone segmented rings allows healthcare facilities to restore full system capability or upgrade existing fixed-ring sets to articulated setups without buying complete new systems.

Key Features

• Exact Component Identification: The Bookwalter Oval Segmented Ring provides articulated perimeter mounting for ratchets and blades during open surgery.

• Dual Articulation Points: Features two heavy-duty mechanical hinge joints that permit angular frame tilting to match sloped patient anatomy and varied incision depths.

• Modifiable Frame Length: Accepts interchangeable straight side segments, allowing operating room staff to alter overall ring length based on procedural requirements.

• Partial Ring Functionality: Can be deployed as an open or partial frame configuration to prevent hardware obstruction during specialized surgical maneuvers.

• Three Functional Size Variants: Offered in Small, Medium, and Large dimensions to suit specific incision lengths and anatomical dimensions.

• Surgical-Grade Stainless Steel Construction: Forged from solid non-magnetic stainless steel to withstand high mechanical loads and resist pitting, corrosion, and wear.

• Universal Bookwalter Compatibility: Engineered to standard Bookwalter-style tolerances for broad interchangeability across existing field posts, horizontal flex bars, and ratchets.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments without joint binding.

Surgical Applications

The Bookwalter Oval Segmented Ring acts as an adjustable perimeter mounting frame within table-mounted retractor systems across multiple disciplines:

• General Surgery: Supports multi-vector tissue exposure during open exploratory laparotomies, complex hernia reconstructions, and bowel resections (Medium and Large sizes).

• Abdominal Surgery: Angles over non-planar abdominal contours during upper quadrant resections, subtotal gastrectomies, and pancreatectomies (Medium size).

• Urology: Delivers contoured frame placement for deep retroperitoneal access during open radical nephrectomies, adrenalectomies, and radical cystectomies (Medium and Large sizes).

• Gynecology: Conforms to pelvic anatomy during open abdominal hysterectomies, myomectomies, and extensive pelvic staging operations (Small and Medium sizes).

• Hepatobiliary Surgery: Angles frame segments over the costal arch to optimize blade placement during open cholecystectomies and hepatic resections (Medium and Large sizes).

• Colorectal Surgery: Supports partial or full ring setups in narrow pelvic operative fields during colectomies and low anterior resections (Small and Medium sizes).

Practical Benefits for Healthcare Facilities

• Adaptable Frame Contouring: Dual articulation joints allow surgical teams to angle the frame around irregular body habitus, maintaining stable blade orientation.

• Customizable Operating Field: Interchangeable straight segments and partial-ring setups allow custom frame geometry for specialized procedural demands.

• Cost-Effective System Upgrade: Replaces rigid solid rings individually to add articulated retraction capabilities to existing hospital instrument sets.

• Direct Component Compatibility: Integrates with standard Bookwalter-style field posts, horizontal flex bars, Standard Ratchets, and Tilt Ratchets.

• Simplified Sterile Processing: Disassemblable hinge components allow straightforward pre-cleaning, automated washing, and standard autoclave packaging.

• Durable Hospital Construction: Premium surgical-grade stainless steel ensures long service life through continuous reprocessing cycles.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Specialized Manufacturer: Dedicated production of high-precision surgical retractors and replacement components

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Production Lead Time: Average lead time of 12–16 days for standard fulfillment
