Bookwalter Retractor System

Surgical site exposure in deep abdominal procedures requires steady, multi-directional retraction. Relying on manual retractors causes assistant fatigue, inconsistent force, and blocked visual field lines.

The Bookwalter Retractor System solves these challenges by securing directly to the operating table side rail. Once locked in position, the framework maintains clear, immovable access to the surgical cavity without requiring hands-on effort from surgical assistants.

This complete system combines both rigid and adjustable components to handle varying patient anatomies and incision sizes. The included solid oval ring provides a firm perimeter for standard midline access, while the jointed segmented ring allows surgical teams to contour the frame around larger or uneven anatomical dimensions. Multi-angle tilt ratchets allow surgeons to fine-tune blade angles and pull force at deep cavity levels.

Every component is forged from high-tensile surgical stainless steel built for continuous hospital use and repeated steam autoclaving.

Key Features

• Table-Mounted Stability: Clamps securely to standard operating table rails to deliver stable, hands-free exposure.

• Dual Ring Options: Includes a medium oval ring for standard access and a medium segmented ring for customizable joint adjustments.

• Multi-Angle Tilt Ratchets: 7 tilt ratchets provide continuous angle and depth control inside the incision.

• 19-Piece Blade Selection: Supplied with rigid Balfour, varied-depth Kelly (3″ to 7″), and bendable malleable blades.

• Flexible Overhead Extension: Features a 1-inch horizontal flex bar for precise frame placement before final locking.

• Surgical-Grade Stainless Steel: Built with high-strength, corrosion-resistant stainless steel with a low-glare satin finish.

• Organized Sterilization Case: Ships with a heavy-duty perforated case for safe handling, washing, and autoclaving.

Benefits

• Reduces Surgical Team Fatigue: Holds tissue back automatically, freeing assistants to support suturing and instrument handling.

• Improves Surgical Visibility: Maintains constant, unyielding retraction so surgeons have a clear line of sight into deep cavity zones.

• Adapts to Diverse Procedures: Works across midline, paramedian, and transverse abdominal incisions without needing extra retractor sets.

• Protects Tissue Walls: Smooth blade edges and adjustable tension prevent accidental tissue trauma or slippage.

• Lowers Operating Costs: Durable stainless steel construction delivers a long working life under heavy hospital turnover.

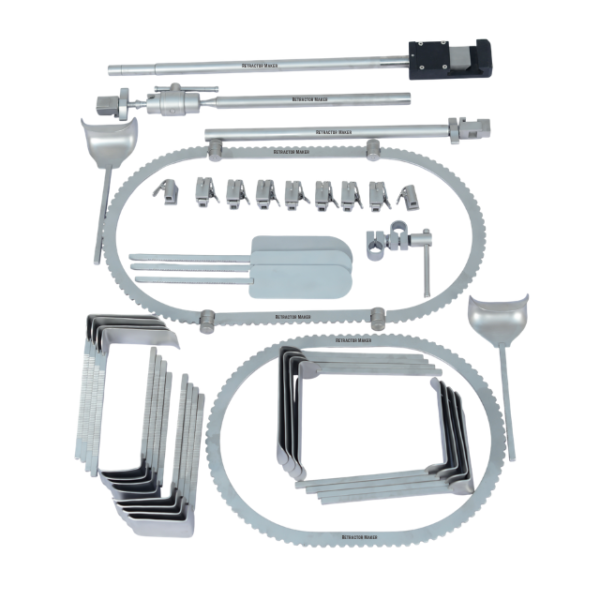

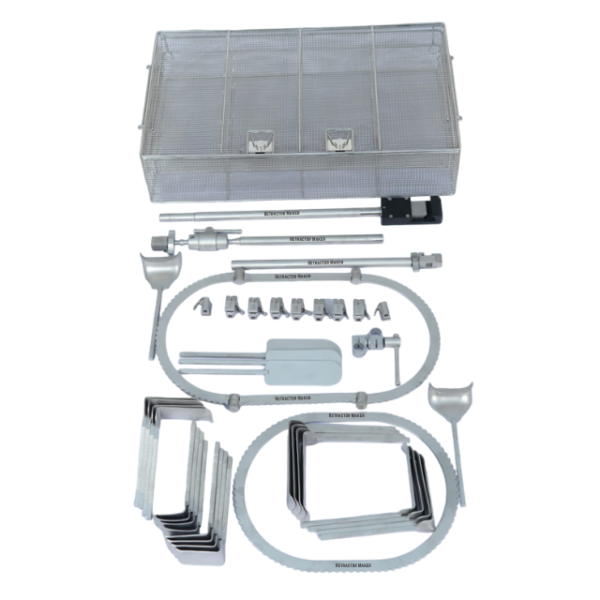

Complete Components Included

Component Name	Dimension / Specification	Quantity Included
Bookwalter Field Post	12″ (30.5 cm)	1
Bookwalter Horizontal Bar	Standard	1
Bookwalter Post Coupler	Heavy-Duty	1
Bookwalter Horizontal Flex Bar	1″ Diameter (2.5 cm)	1
Bookwalter Standard Ratchets	Non-Tilt	2
Bookwalter Tilt Ratchet Mechanisms	Multi-Angle	7
Medium Oval Ring	10½″ × 14½″ (26.7 × 36.8 cm)	1
Medium Segmented Ring	10½″ × 19″ (26.7 × 48.3 cm)	1
Balfour Blades	2⅝″ × 3″ (6.7 × 7.6 cm)	2
Kelly Blades	2″ × 3″ (5.1 × 7.6 cm)	4
Kelly Blades	2″ × 4″ (5.1 × 10.2 cm)	4
Kelly Blades	2″ × 5″ (5.1 × 12.7 cm)	4
Kelly Blades	2″ × 6″ (5.1 × 15.2 cm)	4
Kelly Blades	2″ × 7″ (5.1 × 17.8 cm)	4
Malleable Blade	3″ × 6″ (7.6 × 15.2 cm)	1
Malleable Blades	2″ × 6″ (5.1 × 15.2 cm)	2
Sterilization Box	Perforated Organizer Case	1

Clinical Applications

• General Surgery: Exploratory laparotomy, bowel resections, cholecystectomy, and hernia repairs.

• Colorectal Surgery: Colectomy, low anterior resection (LAR), and abdominoperineal resection (APR).

• Gynecological Surgery: Abdominal hysterectomy, myomectomy, and pelvic mass resections.

• Urological Surgery: Open radical nephrectomy, cystectomy, and retroperitoneal dissections.

• Vascular & Transplant: Abdominal aortic aneurysm (AAA) repair and renal transplant procedures.

Technical Specifications

Parameter	Details
System Category	Table-Mounted Surgical Retractor System
Primary Material	Surgical-Grade Stainless Steel
Table Attachment	Standard Operating Table Side Rails
Field Post Height	12 Inches (30.5 cm)
Flex Bar Diameter	1 Inch (2.5 cm)
Ring Configurations	Medium Oval & Medium Segmented
Total Ratchets	9 (2 Non-Tilt, 7 Multi-Angle Tilt)
Total Blades	19 (2 Balfour, 14 Kelly, 3 Malleable)
Surface Finish	Non-Reflective Satin Finish
Sterilization	Autoclavable (Steam Sterilization)
Case Type	Perforated Organizer Tray
Manufacturer	Retractor Maker
Lead Time	12–16 Days

Materials & Care

Stainless Steel Quality

All system parts are manufactured from surgical-grade stainless steel to provide high tensile strength under heavy retraction force. The satin finish diffuses overhead operating room lighting to prevent visual glare.

Cleaning & Sterilization Instructions

1. Disassembly: Separate blades, ratchets, flex bar, and field post before washing.

2. Pre-Rinse: Rinse components immediately after surgery with cold water to remove blood and debris.

3. Cleaning: Wash using neutral pH enzymatic cleaners formulated for stainless steel. Scrub ratchet teeth and joint slots with soft brushes.

4. Rinsing: Rinse thoroughly with distilled or deionized water to prevent water spotting or chemical buildup.

5. Autoclaving: Place clean parts in the perforated sterilization case. Process using standard steam autoclave cycles according to hospital infection control standards.

Optional Accessories

Expand your system’s capabilities with these optional add-ons:

• Bariatric Accessory Kits (Optional): Includes deeper posts and longer blades for thick abdominal walls.

• Small Incision Kits (Optional): Compact ring and blade setups for mini-laparotomy procedures.

• Rectal Surgery Kits (Optional): Specialized angled blades for deep pelvic and rectal access.

• Blade Extenders (Optional): Extension arms for reaching deep anatomical structures.

• Twist Ratchets (Optional): Ratchets offering multi-axis rotation.

Compatible Products

• Bookwalter Retractor Blades

• Bookwalter Retractor Parts

OEM & Private Label Manufacturing

Retractor Maker offers complete OEM and private label manufacturing services for medical distributors, brand owners, and healthcare networks.

• Custom Marking: Laser-etching for company logos, part numbers, and tracking codes.

• Custom Set Configurations: Tailored component combinations and blade selections based on regional demand.

• Custom Packaging: Private-label packaging and barcoding arranged to your specifications.

With over 50 skilled professionals and strict quality management, we deliver consistent production runs with a reliable 12 to 16-day lead time.

Why Buy from Retractor Maker

At Retractor Maker, we focus exclusively on manufacturing reliable, high-grade surgical retractor systems.

• Direct Manufacturer Pricing: Competitive pricing directly from our modern production facility.

• Strict Quality Management: Every set undergoes inspection for mechanical lockup, finish quality, and fit.

• Dependable Lead Times: Standard orders ship within 12 to 16 days.

• Global Trust: Trusted by over 500 healthcare buyers, distributors, and surgical centers worldwide.

If your facility requires general, orthopedic, or cardiovascular retractors, view our full line on our main site, Retractor Maker. For specialized neurosurgical retractor setups, explore options on Leyla Retractor.

Frequently Asked Questions (FAQs)

What components come in this standard Bookwalter Retractor System?

The set includes a 12-inch field post, horizontal bar, horizontal flex bar, post coupler, 9 ratchets (2 non-tilt, 7 tilt), 2 medium rings (oval and segmented), 19 blades (2 Balfour, 14 Kelly, 3 malleable), and a perforated sterilization organizer box.

How does the field post attach to the operating table?

The post coupler clamps onto standard operating table side rails. The 12-inch field post inserts vertically into the coupler and locks tight to form the foundation for the overhead ring frame.

What is the advantage of a segmented ring over an oval ring?

The solid oval ring provides a rigid perimeter for standard abdominal setups. The segmented ring features hinged joints that allow surgical teams to angle the frame around larger patient contours or specific surgical angles.

Why does this set include both tilt and non-tilt ratchets?

Non-tilt ratchets lock blades in a straight horizontal plane. Multi-angle tilt ratchets allow surgeons to pivot the blade vertically, directing pull force deeper into the abdominal cavity for better visibility.

Are all parts in this set autoclavable?

Yes. All components are made from surgical stainless steel and are designed for standard steam autoclave sterilization inside the included perforated case.

What are malleable blades used for?

Malleable blades are made from bendable stainless steel. Surgeons can shape them by hand during surgery to hold specific organ boundaries or delicate tissue without causing trauma.

What is your average order lead time?

Our standard manufacturing and shipping preparation lead time is 12 to 16 days.

Do you supply individual replacement blades or parts?

Yes. You can purchase additional or replacement parts separately on our Bookwalter Retractor Blades and Bookwalter Retractor Parts pages.

How do I get a price quote for bulk or hospital orders?

You can request pricing directly by visiting our Request a Quote page or contacting our support team.
