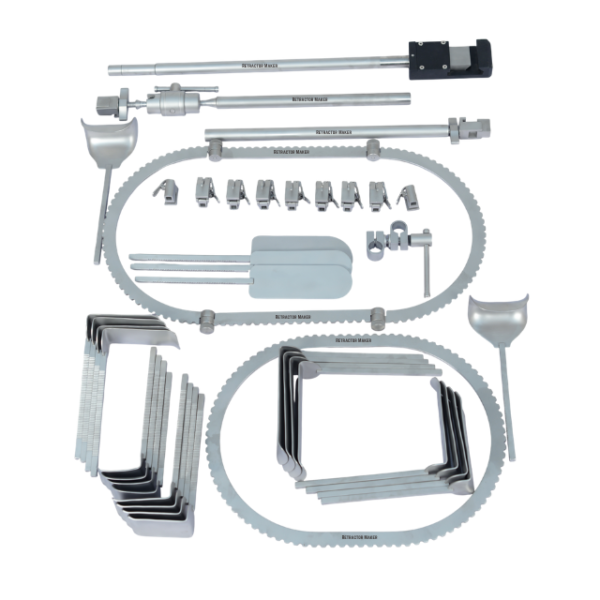

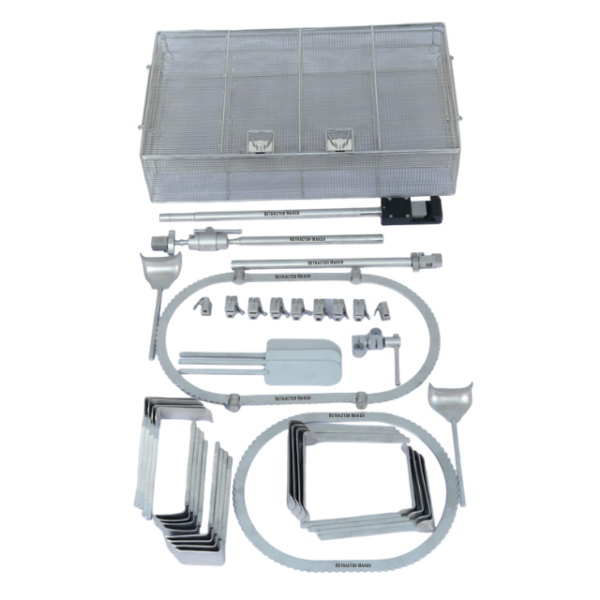

Bookwalter Retractor System

Maintain continuous, multi-directional surgical exposure across deep abdominal cavities and pelvic spaces requires a robust, self-retaining framework that adapts to varying anatomical depths. Serving as the foundational flagship configuration in our surgical retraction portfolio, the Bookwalter Retractor System clamps directly to standard operating table side rails to deliver steady, hands-free visualization during extensive open operations. By sustaining uniform holding tension on abdominal walls and deep tissue layers without relying on continuous manual holding from assistant staff, this system reduces physical fatigue in the operating suite while keeping the surgical field clear.

Hospitals, multi-specialty surgical centers, and healthcare procurement departments rely on this comprehensive setup because it represents the most complete, versatile standard assembly available. The system includes both a solid medium oval ring for rigid, classic frame stability and a hinged medium segmented ring that flexes to accommodate wider patient contours and varied incision lines.

Paired with a post coupler, horizontal flex bar, 2 standard ratchets, 7 multi-angle tilt ratchets, and an extensive 23-blade assortment spanning rigid Balfour, deep Kelly, and shapeable malleable blades, the assembly gives surgeons complete control over retraction depth, elevation, and tension. Facilities can expand this core framework over time by sourcing specialized blades from our Bookwalter Retractor Blades collection or acquiring standalone hardware from our Bookwalter Retractor Parts inventory. Manufactured directly by Retractor Maker to standard Bookwalter-style dimensions, this complete set offers medical supply partners a reliable, high-utility capital asset.

Key Features

• Complete Flagship System Architecture: Combines a full table-mounting assembly, dual ring frames, 9 ratchet mechanisms, and a 23-piece blade inventory into one comprehensive surgical set.

• Dual Oval and Segmented Ring Frames: Includes a 10½″ × 14½″ solid oval ring and a 10½″ × 19″ hinged segmented ring for optimal frame adaptability across diverse patient sizes.

• Versatile Dual Ratchet Selection: Features 2 standard non-tilt ratchets and 7 multi-angle tilt ratchets for fine control over blade height, depth, and directional tissue tension.

• Extensive Deep-Reach Blade Inventory: Contains multiple sizes of Balfour blades, extended Kelly blades (up to 7 inches in depth), and shapeable malleable blades for deep abdominal organ holding.

• Rigid Table-Mounted Support: Clamps securely to operating table side rails via a 12-inch field post, post coupler, horizontal bar, and multi-jointed flex bar to eliminate tissue drift.

• Expandable Modular Platform: Designed for seamless integration with optional specialized accessory kits, extra rings, and custom blade designs.

• Autoclavable Stainless Steel Construction: Built entirely from surgical-grade, non-magnetic stainless steel engineered to withstand repeated autoclave processing cycles.

• Compartmentalized Sterilization Box: Supplied in a dedicated sterilization container for safe transit, organized tray counting, and efficient central sterile processing.

Surgical Applications

The Bookwalter Retractor System serves as a primary, multi-specialty surgical retraction platform across a wide array of open surgical procedures, including:

• General & Abdominal Surgery: Provides steady, multi-directional exposure during exploratory laparotomies, complex hernia reconstructions, and bowel resections.

• Urology & Nephrectomy: Delivers clear, hands-free visualization during open radical nephrectomies, partial nephrectomies, radical cystectomies, and retroperitoneal dissections.

• Gynecology & Pelvic Surgery: Supports stable tissue elevation during open hysterectomies, myomectomies, and deep pelvic floor reconstructive procedures.

• Colorectal & Hepatobiliary Surgery: Maintains unobstructed exposure during colectomies, pelvic exenterations, open cholecystectomies, and liver tissue dissections.

• Vascular & Bariatric Surgery: Facilitates deep abdominal access during open aortic aneurysm repairs, peripheral bypasses, and bariatric interventions.

• Oncologic & Transplant Surgery: Delivers steady, wide-field access during complex tumor resections and organ transplant procedures across multi-specialty operating rooms.

Included Components

Component Name	Dimensions / Specification	Quantity Included
Bookwalter Field Post	12″ (30.5 cm)	1
Bookwalter Horizontal Bar	Standard	1
Bookwalter Post Coupler	Standard Heavy-Duty	1
Bookwalter Horizontal Flex Bar	1″ Diameter (2.5 cm)	1
Bookwalter Standard Ratchets	Non-Tilt	2
Bookwalter Tilt Ratchet Mechanisms	Multi-Angle	7
Bookwalter Oval Ring, Medium	10½″ × 14½″ (26.7 × 36.8 cm)	1
Bookwalter Segmented Ring, Medium	10½″ × 19″ (26.7 × 48.3 cm)	1
Bookwalter Balfour Blades	2⅝″ × 3″ (6.7 × 7.6 cm)	2
Bookwalter Kelly Blades	2″ × 3″ (5.1 × 7.6 cm)	4
Bookwalter Kelly Blades	2″ × 4″ (5.1 × 10.2 cm)	4
Bookwalter Kelly Blades	2″ × 5″ (5.1 × 12.7 cm)	4
Bookwalter Kelly Blades	2″ × 6″ (5.1 × 15.2 cm)	4
Bookwalter Kelly Blades	2″ × 7″ (5.1 × 17.8 cm)	4
Bookwalter Malleable Blade	3″ × 6″ (7.6 × 15.2 cm)	1
Bookwalter Malleable Blades	2″ × 6″ (5.1 × 15.2 cm)	2
Sterilization Box	Protective Organizer Container	1

Practical Benefits for Healthcare Facilities

• Multi-Specialty Facility Standardization: Equipping surgical suites with this comprehensive system allows a single retractor tray to serve general surgery, urology, gynecology, and vascular departments.

• Reduced Operating Room Staff Fatigue: Table-anchored retraction holds tissue open reliably throughout extended multi-hour procedures, freeing assistant staff from manual holding.

• Adaptable Procedural Customization: Dual ring geometries combined with 23 varied blades allow surgical teams to match retraction depth and width precisely to patient anatomy.

• Streamlined Central Sterile Processing: The compartmentalized sterilization box simplifies pre-operative counting, washing, inspection, and autoclaving workflows for processing staff.

• Long-Term Cost Efficiency: Standardized component dimensions ensure seamless interchangeability with existing hospital inventory, allowing easy replacement of individual worn parts without replacing complete systems.

Why Choose Retractor Maker

Retractor Maker is a specialized medical device manufacturer producing surgical retractors for hospitals, surgical centers, and medical distributors worldwide.

• Flagship System Specialization: Manufactured specifically for healthcare facilities requiring a comprehensive, multi-specialty retractor platform with an extensive blade and ring inventory.

• Standard Compatibility: Built to standard Bookwalter-style dimensions for seamless integration with existing hospital retractor inventory.

• Complete Component Availability: Standalone replacement blades, segmented ring sections, ratchets, and mounting hardware available separately to support long-term facility maintenance.

• OEM & Private Labeling: Dedicated manufacturing capabilities supporting private labeling and custom configuration requests for global distributors.

• Established Supply Operations: Founded in 2023 with a 50+ technical workforce, 500+ satisfied clients, a 12–16 day average lead time, and full export documentation.

Looking for Additional Surgical Solutions?

Browse our complete catalog of surgical retractors on our main manufacturing site. For facilities performing cranial operations or delicate neurosurgical procedures requiring specialized holding arms, explore our dedicated Leyla Retractor line for neurosurgical applications.

Frequently Asked Questions (FAQs)

What is the Bookwalter Retractor System?

It is a comprehensive, table-mounted, self-retaining surgical retractor system designed to provide stable, hands-free, multi-directional exposure during open abdominal, pelvic, and general surgical procedures.

What is included in this complete system?

The complete system includes a 12″ field post, horizontal bar, post coupler, horizontal flex bar, 2 standard ratchets, 7 tilt ratchets, a medium oval ring, a medium segmented ring, 23 assorted blades (Balfour, Kelly up to 7″ deep, and malleable blades), and a protective sterilization box.

What is the advantage of having both oval and segmented rings?

The solid oval ring provides a rigid, classic frame for standard abdominal procedures. The segmented ring features hinged joints that flex to adjust frame shape, accommodating wider patient contours and variable incision lines.

Which surgical procedures commonly use this system?

This system is widely used across general surgery, abdominal procedures, open urology, gynecology, colorectal surgery, hepatobiliary procedures, vascular access, surgical oncology, and organ transplant operations.

Can additional blades, rings, and replacement parts be purchased separately?

Yes. Healthcare facilities and supply distributors can source extra standalone components in our Bookwalter Retractor Blades and Bookwalter Retractor Parts sections as facility demands expand.

How can hospitals request pricing and delivery information?

Formal B2B pricing, volume discounts, and shipping estimates can be requested through our Request a Quote page or by reaching out directly to our sales team via our Contact Us page or Product Catalogue section.
