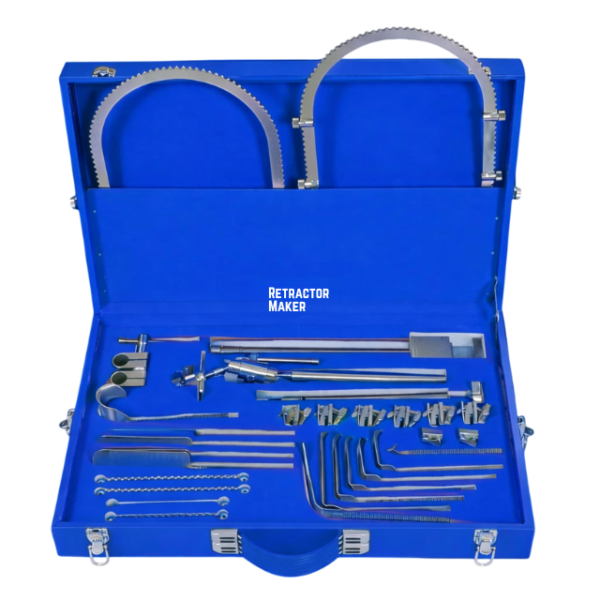

Bookwalter Retractor

is a table-mounted, self-retaining surgical instrument designed to give surgical teams consistent, multi-directional access during major open surgical procedures. By securing directly to the operating room table rail, it maintains retraction angles without requiring manual holding from surgical staff.

Engineered with modular components, this setup allows surgeons to adjust ring positions, ratchet angles, and blade depths according to specific incision requirements. As part of our complete Bookwalter Retractor Systems line, the combination of solid oval and segmented rings accommodates varying incision sizes, making it a reliable solution for hospitals and surgical centers.

Key Features

• Table-Mounted Architecture: Attaches firmly to standard operating room table rails using a dedicated post and coupler setup for secure attachment during procedures.

• Self-Retaining Retraction: Maintains tissue and organ retraction throughout long procedures, allowing operating room staff to focus on other critical tasks.

• Modular Ring Designs: Includes a medium solid oval ring and a medium segmented ring for different surgical access requirements.

• Multi-Angle Ratchets: Features both non-tilt ratchets and multi-angle tilt mechanisms for precise height and directional control.

• Rigid & Malleable Blade Selection: Supplied with Balfour, Kelly, Harrington, and malleable blades to suit diverse tissue retraction needs.

• Organized Protective Storage: Shipped in a fitted, perforated wooden box designed for safe storage, tray prep, and protective transport.

Surgical Applications

The Bookwalter Retractor is commonly used across surgical specialties where deep exposure of abdominal or pelvic cavities is required, including:

• General Surgery: Exploratory laparotomies, bowel resections, and complex abdominal wall procedures.

• Urology: Radical prostatectomies, nephrectomies, and bladder surgeries.

• Gynecology & Pelvic Surgery: Abdominal hysterectomies and deep pelvic dissections.

• Vascular Surgery: Abdominal aortic repairs and retroperitoneal exposures.

Included Components

Component Name	Dimension / Specification	Quantity Included
Bookwalter Field Post	12″ (30.5 cm)	1
Bookwalter Horizontal Bar	Standard	1
Bookwalter Post Coupler	Standard	1
Bookwalter Horizontal Flex Bar	1″ Diameter (2.5 cm)	1
Bookwalter Standard Ratchets	Non-Tilt	2
Bookwalter Tilt Ratchet Mechanisms	Multi-Angle	5
Bookwalter Oval Ring, Medium	10½″ × 14½″ (26.7 × 36.8 cm)	1
Bookwalter Segmented Ring, Medium	10½″ × 19″ (26.7 × 48.3 cm)	1
Bookwalter Balfour Blades	2⅝″ × 3″ (6.7 × 7.6 cm)	2
Bookwalter Kelly Blade	2″ × 3″ (5.1 × 7.6 cm)	1
Bookwalter Kelly Blade	2″ × 4″ (5.1 × 10.2 cm)	1
Bookwalter Kelly Blade	2″ × 5″ (5.1 × 12.7 cm)	1
Bookwalter Kelly Blade	2″ × 6″ (5.1 × 15.2 cm)	1
Bookwalter Malleable Blade	3″ × 6″ (7.6 × 15.2 cm)	1
Bookwalter Malleable Blades	2″ × 6″ (5.1 × 15.2 cm)	2
Bookwalter Harrington Blade	1″ × 5⅝″ × 2½″ (2.5 × 14.3 × 6.4 cm)	1
Wooden Storage Box	Fitted Protective Case	1

Practical Benefits for Healthcare Facilities

• Organized Surgical Retraction: Holds the incision open evenly across extended procedures without manual tissue fatigue.

• Adaptable Configuration: Multiple blade sizes and tilt angles allow surgical teams to adjust the layout for different incision sizes.

• Component Replacement Support: Individual replacement parts and extra blades can be sourced separately to maintain existing sets over time.

• Organized Inventory Management: The fitted wooden box helps surgical staff organize, count, and prepare components for sterilization.

Why Source from Retractor Maker

Retractor Maker is a specialized medical device manufacturer focused on surgical retractors for healthcare facilities worldwide.

• Dedicated Manufacturing Facility: Backed by an experienced workforce of over 50 surgical instrument professionals.

• Global Supply Capability: Serving 500+ satisfied hospitals, surgical centers, and medical device distributors worldwide.

• Strict Quality Inspection: Every post, ring, ratchet, and blade undergoes structured quality checks prior to dispatch.

• Reliable Dispatch: Standard orders feature an average fulfillment lead time of 12–16 days with complete export documentation.

Need specialized neurosurgical instrumentation?

If your surgical facility also performs neurosurgical or cranial procedures, explore our dedicated line of Leyla Retractor System options designed for delicate neurosurgical retraction.

Frequently Asked Questions (FAQs)

What is a Bookwalter Retractor?

The Bookwalter Retractor is a table-mounted, self-retaining surgical retractor used in open abdominal, pelvic, and vascular procedures. It attaches to the operating table rail to hold incisions open without manual assistance from operating room staff.

What components are included in this complete set?

This set includes a 12″ field post, horizontal bar, post coupler, horizontal flex bar, 2 non-tilt ratchets, 5 tilt ratchets, a medium oval ring, a medium segmented ring, 8 surgical blades (Balfour, Kelly, Malleable, Harrington), and a protective wooden box.

Can Bookwalter Retractor parts and blades be purchased separately?

Yes. In addition to complete sets, individual components can be ordered separately. You can explore our dedicated collections for Bookwalter Retractor Blades and Bookwalter Retractor Parts.

Who uses the Bookwalter Retractor?

This system is utilized by general surgeons, urologists, gynecologists, and vascular surgeons in hospitals and ambulatory surgical centers. Purchasing decisions are typically managed by hospital procurement departments, OR materials managers, and medical distributors.

How can I request a price quote for this product?

You can request factory-direct pricing by visiting our official Request a Quote page or using the contact button below. Our team responds promptly with B2B quotes and international dispatch terms.

Request Your B2B Quotation

Looking for pricing on the complete Bookwalter Retractor, individual blades, or bulk hospital supply? Contact Retractor Maker today for factory-direct pricing, custom ordering options, and international supply details.
