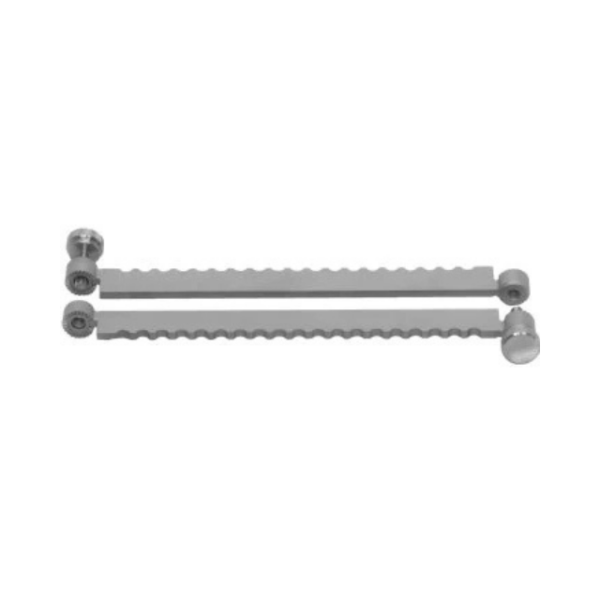

Bookwalter Ring Segments

are straight connector bars used to assemble customized retractor frame geometries within the Bookwalter Retractor System. Suspended over the operative site via a vertical field post and horizontal flex bar, these straight segments join matching curved half-circle sections to form the perimeter mounting frame. Incorporating straight segments into the frame assembly allows surgical teams to expand the longitudinal aperture of the ring frame to match specific incision lengths and patient body habitus.

Deployed in pairs alongside curved Bookwalter Half Circle Rings, these straight segments convert round ring configurations into elongated oval frames. Operating room personnel insert two 4-inch, 6-inch, or 8-inch straight segments between the ends of two half-circle sections, extending the total frame length. This modular construction allows surgical technicians to reconfigure a single set of ring components for varying procedural approaches, from compact abdominal incisions to extended midline laparotomies.

Available in three distinct length options, the straight ring segments support diverse frame configurations:

• Small Ring Segments (4 inches / 10.2 cm): Used in pairs with half-circle rings to form compact oval frames for localized abdominal, gynecologic, or pediatric approaches.

• Medium Ring Segments (6 inches / 15.2 cm): The standard straight segment length, creating medium oval frames for general abdominal surgery, bowel resections, and urologic operations.

• Large Ring Segments (8 inches / 20.3 cm): The longest straight segments, assembling extended oval frames for long incisions, deep pelvic exenterations, and high-BMI patient procedures.

This replacement component is manufactured to standard Bookwalter-style dimensions, allowing direct integration into existing hospital retractor system inventories. Central sterile processing personnel can clean, inspect, and autoclave the stainless steel segments using standard hospital washing and steam sterilization protocols. Sourcing standalone replacement straight segments enables healthcare facilities to restore incomplete segmented ring sets or expand current frame-building options without purchasing entire new retractor assemblies.

Key Features

• Exact Component Identification: Bookwalter Ring Segments provide modular straight perimeter sections for constructing elongated oval retractor frames.

• Modular Frame Expansion: Connects between pairs of Bookwalter Half Circle Rings to adjust overall frame length based on incision size and procedural access needs.

• Three Functional Length Options: Offered in Small (4″), Medium (6″), and Large (8″) sizes to accommodate varied patient anatomies and surgical specialties.

• Full Circumferential Blade Mounting: Smooth outer rail permits unrestricted placement and sliding of standard, tilt, and self-retaining ratchets along the straight sections.

• Surgical-Grade Stainless Steel Construction: Forged from solid non-magnetic stainless steel to withstand heavy mechanical loads and resist pitting, corrosion, and wear.

• Universal Bookwalter Compatibility: Engineered to standard Bookwalter-style tolerances for broad interchangeability across existing field posts, horizontal flex bars, and half-circle rings.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments without connection wear or binding.

Common Surgical Applications

Bookwalter Ring Segments serve as core modular extension components within table-mounted retractor systems across multiple disciplines:

• General Surgery: Connects with half-circle rings to build medium or large oval frames supporting multi-vector tissue exposure during open exploratory laparotomies and bowel resections.

• Abdominal Surgery: Expands ring length for ventral hernia repairs, subtotal gastrectomies, and pancreatectomies requiring broad longitudinal clearance.

• Urology: Delivers customized frame length for retroperitoneal exposure during open radical nephrectomies, adrenalectomies, and radical cystectomies.

• Gynecology: Assembles into compact or medium oval frames for open abdominal hysterectomies, myomectomies, and deep pelvic staging operations.

• Hepatobiliary Surgery: Extends frame reach over the subcostal margin during open cholecystectomies, biliary tract procedures, and liver resections.

• Vascular Surgery: Forms a stable, elongated perimeter for multi-point tissue retraction during open abdominal aortic aneurysm (AAA) repairs.

Practical Benefits for Healthcare Facilities

• Customizable Frame Dimensions: Allows operating room teams to construct oval retractor frames tailored precisely to specific patient anatomies and incision lengths.

• Three Length Variants: Choice of 4-inch, 6-inch, and 8-inch segments provides procedural flexibility across small, standard, and bariatric surgical cases.

• Modular Tray Efficiency: Storing straight and half-circle ring segments replaces the need to keep multiple dedicated solid oval rings in active tray storage.

• Cost-Effective System Maintenance: Replaces individual lost or damaged straight segments without requiring capital expenditure for complete new retractor systems.

• Direct System Compatibility: Integrates into standard Bookwalter-style instrument sets, fitting existing field posts, horizontal flex bars, half-circle rings, and ratchets.

• Simplified Sterile Processing: Smooth stainless steel construction allows straightforward pre-cleaning, automated washing, and standard autoclave packaging.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Specialized Manufacturer: Dedicated production of high-precision surgical retractors and replacement components

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Production Lead Time: Average lead time of 12–16 days for standard fulfillment

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for general, urologic, gynecologic, and small incision surgery.

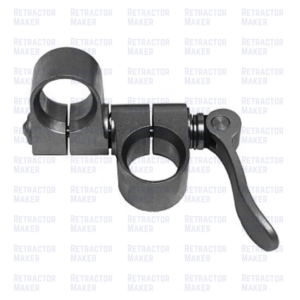

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, horizontal flex bars, Standard Ratchets, and Tilt Ratchets.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, and Deaver blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What are Bookwalter Ring Segments?

Bookwalter Ring Segments are straight stainless steel connector bars used to modify the size and shape of a segmented retractor frame. They connect between pairs of Bookwalter Half Circle Rings to build elongated oval frames.

What sizes are available for Bookwalter Ring Segments?

They are available in three lengths: Small (4 inches / 10.2 cm), Medium (6 inches / 15.2 cm), and Large (8 inches / 20.3 cm).

How do straight ring segments combine with half-circle rings?

Straight ring segments are inserted in pairs between two matching Bookwalter Half Circle Rings. This extends the frame longitudinally, converting a round configuration into a custom-length oval segmented ring.

Are these straight segments compatible with standard Bookwalter systems?

Yes. They are manufactured to standard Bookwalter-style specifications, making them fully compatible with standard Bookwalter-style field posts, horizontal flex bars, half-circle rings, and ratchet mechanisms.

Are Bookwalter Ring Segments reusable and autoclavable?

Yes. Manufactured from non-magnetic, surgical-grade stainless steel, these straight segments are 100% reusable and fully autoclavable using standard hospital steam sterilization protocols.
