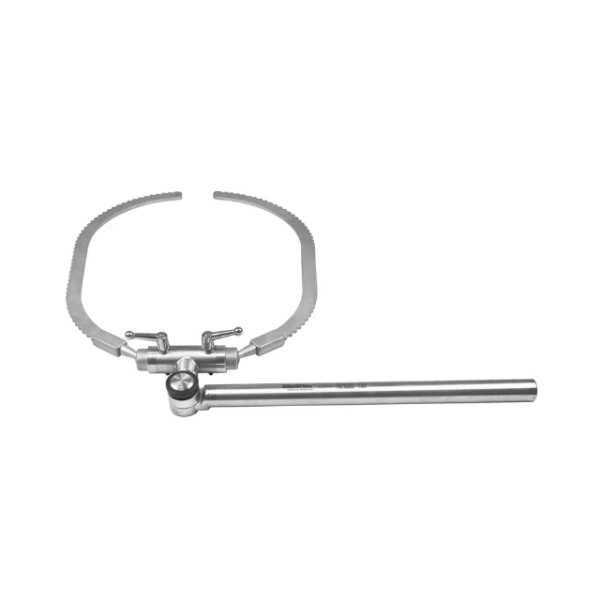

Eagle Split Ring With Integrated Horizontal Bar

combines the flexible positioning of a split-ring retractor frame with the structural support of an integrated horizontal bar. Suspended directly over the surgical field, it connects to standard 1-inch (2.5 cm) Bookwalter vertical field posts using standard post couplers. This integrated structure serves as the primary mounting station for ratchets and retractor blades, supporting multi-vector tissue elevation across expansive operative sites.

Unlike continuous solid or hinged oval rings, this split-ring architecture features two independent arms. Each arm is controlled by its own locking mechanism, allowing surgical personnel to adjust the angle, height, and lateral spread of each ring side separately. Independent arm adjustment enables surgical teams to conform the frame to asymmetric patient contours, elevate the costal arch on one side, or open wider access vectors over deep upper abdominal organs.

By integrating the horizontal support bar directly into the split-ring hub, the assembly eliminates additional interconnecting joints between the bar and the frame. This built-in connection provides rigid mechanical support under heavy upward and lateral retraction loads. The frame accepts standard Bookwalter-style ratchets and notched retractor blades, allowing hospitals to deploy their current blade stock on a split-ring platform.

Available in Small and Large sizes, this component accommodates varied patient body habitus and surgical field dimensions. Sourcing this standalone split-ring assembly allows healthcare facilities to expand their surgical retractor capabilities for liver transplantation and complex hepatobiliary procedures without replacing their existing Bookwalter table post assemblies, couplers, or blade inventories.

Key Features

• Exact Component Identification: The Eagle Split Ring with Integrated Horizontal Bar provides independent split-arm positioning and table-post mounting for high-exposure open surgery.

• Independent Arm Locking Mechanisms: Each split-ring arm locks independently, enabling precise, separate angle and height adjustments on either side of the surgical field.

• Integrated Horizontal Support Bar: Features a built-in horizontal bar that connects directly to standard 1-inch (2.5 cm) field posts and post couplers without extra adapter hardware.

• Upward Tissue Elevation Capability: Allows independent upward angling of the ring arms to lift costal margins and abdominal walls during upper quadrant dissections.

• Two Functional Size Options: Offered in Small and Large size variants to suit specific incision dimensions and patient body habitus.

• Surgical-Grade Stainless Steel Construction: Forged from solid non-magnetic stainless steel to withstand heavy mechanical loads and resist pitting, corrosion, and wear.

• Universal Bookwalter Compatibility: Engineered to standard Bookwalter-style tolerances for direct interchangeability across existing field posts, post couplers, ratchets, and blades.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments without mechanism binding.

Common Surgical Applications

The Eagle Split Ring with Integrated Horizontal Bar serves as an advanced perimeter mounting frame within table-mounted retractor systems across specialized disciplines:

• Liver Transplantation: Delivers wide perimeter clearance and upward costal margin elevation during organ recipient preparation, vascular dissection, and implantation.

• Hepatobiliary Surgery: Provides independent arm elevation over the costal arch to optimize blade placement during complex liver resections, biliary tract reconstructions, and pancreaticoduodenectomies.

• Major Upper Abdominal Surgery: Supports wide multi-vector tissue retraction during total gastrectomies, retroperitoneal tumor resections, and extensive adrenalectomies.

• General & Trauma Surgery: Holds multi-blade retractor setups during high-exposure exploratory laparotomies and complex abdominal wall reconstructions.

• Vascular Surgery: Maintains rigid, non-yielding wall elevation during open suprarenal abdominal aortic aneurysm (AAA) repairs and thoracoabdominal bypasses.

Practical Benefits for Healthcare Facilities

• Independent Side-by-Side Frame Adjustment: Separate arm locking mechanisms allow surgeons to set different retraction angles and heights on each side of the incision.

• Built-In Horizontal Support Bar: Integrated bar design simplifies setup by eliminating intermediate connecting joints between the table post and the ring frame.

• Expands Existing Retractor Capabilities: Adapts existing hospital Bookwalter field posts, couplers, ratchets, and blades for specialized split-ring surgical procedures.

• Cost-Effective Specialty Upgrade: Equips surgical suites for liver transplant and upper abdominal cases without requiring capital expenditure for complete new retractor systems.

• Direct System Compatibility: Mounts on standard 1-inch (2.5 cm) Bookwalter field posts and post couplers, accepting standard Bookwalter-style ratchets and blades.

• Simplified Sterile Processing: Solid stainless steel construction allows straightforward pre-cleaning, automated washing, and standard steam autoclave packaging.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Specialized Manufacturer: Dedicated production of high-precision surgical retractors and replacement components

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Production Lead Time: Average lead time of 12–16 days for standard fulfillment

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for general, urologic, gynecologic, and small incision surgery.

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, horizontal flex bars, Standard Ratchets, and Tilt Ratchets.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, and Deaver blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What is the Eagle Split Ring with Integrated Horizontal Bar?

The Eagle Split Ring with Integrated Horizontal Bar is a specialized stainless steel retractor frame featuring two independently adjustable split arms and a built-in horizontal bar that mounts onto a vertical field post.

How do the independent locking arms benefit surgical positioning?

Each arm has its own locking mechanism, allowing surgical personnel to adjust the height, angle, and lateral position of each side independently. This flexibility provides precise control over asymmetric anatomical fields and upward tissue elevation.

What sizes are available for this split ring?

It is available in two sizes: Small and Large, accommodating varied patient anatomies and surgical field dimensions.

Is it compatible with existing Bookwalter systems?

Yes. The integrated horizontal bar fits standard 1-inch (2.5 cm) Bookwalter field posts and post couplers, while the split-ring arms accept standard Bookwalter-style ratchets and notched retractor blades.

Is the Eagle Split Ring with Integrated Horizontal Bar reusable and autoclavable?

Yes. Manufactured from non-magnetic, surgical-grade stainless steel, the assembly is 100% reusable and fully autoclavable using standard hospital steam sterilization protocols.

How can I request pricing or bulk supply?

Hospitals, medical distributors, and procurement managers can request formal B2B price quotations, bulk discount details, and shipping timelines through our Request a Quote page or by contacting our team via our Contact Support page.
