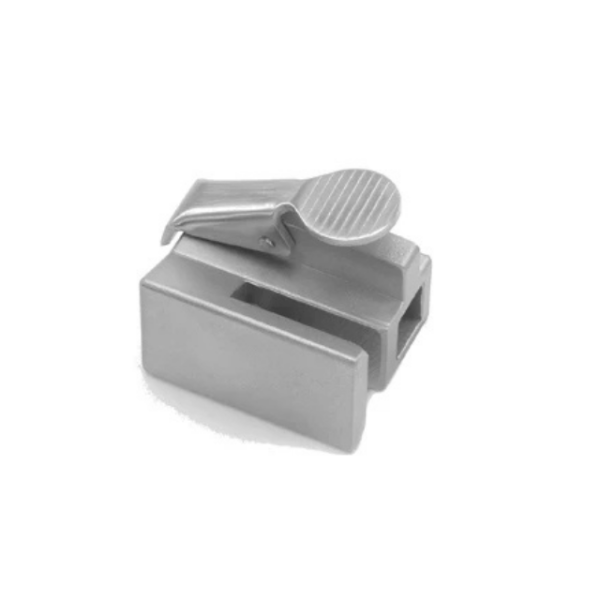

Bookwalter Standard Ratchet

is the primary locking mechanism that attaches surgical retractor blades to a Bookwalter ring frame. It snaps directly onto the perimeter of solid or segmented rings, establishing a rigid bridge between the table-mounted framework and the retractor blade. By holding the blade firmly at the selected retraction depth, this component maintains constant, hands-free exposure across abdominal, pelvic, or thoracic surgical sites.

Featuring a precision internal gear drive, the ratchet allows surgical personnel to advance and lock blades using one-handed operation. The technician or surgeon inserts the notched blade shank into the ratchet body and pulls the blade back incrementally to achieve the required tissue tension. The internal mechanism engages each tooth on the blade shaft instantly, preventing backwards slippage under high tissue resistance.

An integrated quick-release lever allows immediate tension adjustment, intraoperative blade repositioning, or swift removal at the end of a case. Pressing the release thumb-lever disengages the internal pawl, allowing the blade shaft to slide freely out of the housing without altering the position of the ring frame or main mounting assembly. This mechanical control allows surgical teams to relax tissue retraction intermittently during long operations.

This replacement part is manufactured to standard Bookwalter-style dimensions, allowing immediate integration into existing hospital retractor system inventories. Central sterile processing personnel can clean, inspect, and autoclave the ratchet using standard stainless steel instrument processing routines. Sourcing individual replacement parts enables healthcare facilities to maintain complete retractor trays in active service without purchasing full system assemblies.

Key Features

• Exact Component Identification: The Bookwalter Standard Ratchet provides secure blade mounting and linear tensioning along Bookwalter ring frames.

• One-Handed Ratcheting Operation: Allows operating room staff to advance and lock retractor blades incrementally using a single hand during surgical setup.

• Integrated Quick-Release Lever: Features a thumb-operated release mechanism for fast blade removal, tension reduction, or depth re-adjustment.

• Positive-Locking Pawl Mechanism: Engages blade shaft notches firmly to prevent accidental slippage under heavy tissue resistance.

• Surgical-Grade Stainless Steel: Forged from solid non-magnetic stainless steel to withstand high mechanical tension and resist surface pitting, corrosion, and wear.

• Universal Bookwalter Compatibility: Engineered to standard Bookwalter-style tolerances for full interchangeability with existing hospital ring frames, field posts, and retractor blades.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments without binding or spring degradation.

• Passivated Anti-Glare Finish: Treated with a smooth, passivated surface finish that reduces glare from overhead surgical lighting while remaining easy to clean.

Compatibility

The Bookwalter Standard Ratchet is engineered for compatibility with standard Bookwalter retractor system components, including:

• Solid oval, hinged segmented, small round, and notched perineal ring frames

• Standard Balfour, Kelly, Malleable, Harrington, Deaver, and specialized Bookwalter blades

• Table-mounted support frameworks comprising Field Posts, Post Couplers, and Horizontal Flex Bars

• Standard Bookwalter Retractor Parts across general, urologic, gynecologic, and pelvic surgery sets

Common Surgical Applications

The Bookwalter Standard Ratchet serves as the primary blade-holding mechanism within a table-mounted retractor system across multiple disciplines:

• General Surgery: Holds abdominal wall and visceral blades during open exploratory laparotomies, bowel resections, and hernia reconstructions.

• Urology: Secures deep Kelly and Renal Wylie blades during open radical nephrectomies, retroperitoneal exposures, and radical cystectomies.

• Gynecology: Maintains lateral and posterior blade retraction during open abdominal hysterectomies, myomectomies, and deep pelvic staging procedures.

• Colorectal Surgery: Holds deep pelvic blades in place during colectomies, proctectomies, and low anterior resections.

• Hepatobiliary Surgery: Anchors liver and rib margin blades during open cholecystectomies and liver resections.

• Vascular Surgery: Maintains abdominal wall retraction during open abdominal aortic aneurysm (AAA) repairs and bypass procedures.

• Bariatric Surgery: Secures deep-reaching abdominal blades over thick tissue layers during open bariatric interventions.

Practical Benefits for Healthcare Facilities

• One-Handed Positioning Control: Simplifies blade adjustment for surgeons and scrub nurses, allowing rapid modification of tissue exposure during surgery.

• Cost-Effective Maintenance: Replacing individual missing or worn ratchets restores full set functionality without requiring capital expenditure for complete new retractor systems.

• Inventory Compatibility: Standardized dimensions allow immediate deployment alongside a hospital’s existing stock of retractor rings and blades.

• Reliable Tissue Holding: Heavy-duty internal spring and pawl design prevents blade slipping, maintaining consistent tissue elevation throughout extended operations.

• Simplified Sterile Processing: Open-body design allows straightforward pre-cleaning, automated washing, and standard autoclave packaging.

• Reduced Operating Room Downtime: Keeping spare ratchets on hand prevents surgical delays caused by incomplete or damaged retractor trays.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Lead Time: Average production lead time of 12–16 days for standard fulfillment

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Custom Manufacturing: OEM and private-label production capabilities supporting custom specifications for medical device brands

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for general, urologic, gynecologic, and small incision surgery.

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, horizontal flex bars, and tilt ratchet mechanisms.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, and Deaver blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What is the Bookwalter Standard Ratchet?

The Bookwalter Standard Ratchet is a stainless steel clamping component that mounts on a Bookwalter ring frame. It accepts the notched shank of a retractor blade, allowing precise linear advancement and locking for self-retaining tissue retraction.

How does the one-handed operation work?

Operating room staff attach the ratchet to the ring frame and insert the blade shaft. Pulling back on the blade advances it through the internal ratcheting drive, which locks automatically into each shaft notch without requiring a secondary screw or lever turn.

What is the function of the release lever?

The thumb-operated release lever disengages the internal locking pawl from the blade shaft. Pressing the lever allows the blade to slide out instantly for depth adjustment, tissue relaxation, or complete removal.

Is this standard ratchet compatible with standard Bookwalter systems?

Yes. It is manufactured to standard Bookwalter-style specifications, making it fully compatible with standard Bookwalter-style ring frames and notched retractor blade shanks.

Can I replace only the standard ratchet without buying a complete system?

Yes. This component is sold individually, allowing facilities to replace lost, damaged, or worn ratchets without purchasing an entirely new retractor system.

Is the Bookwalter Standard Ratchet reusable and autoclavable?

Yes. Manufactured from surgical-grade stainless steel, the ratchet is 100% reusable and fully autoclavable using standard hospital steam sterilization cycles.

How can I request pricing and delivery information?

Hospitals, medical distributors, and procurement managers can request formal B2B price quotations, bulk discount details, and shipping timelines through our Request a Quote page or by contacting our team via our Contact Support page.
