Bookwalter IMA Ratchet Mechanism

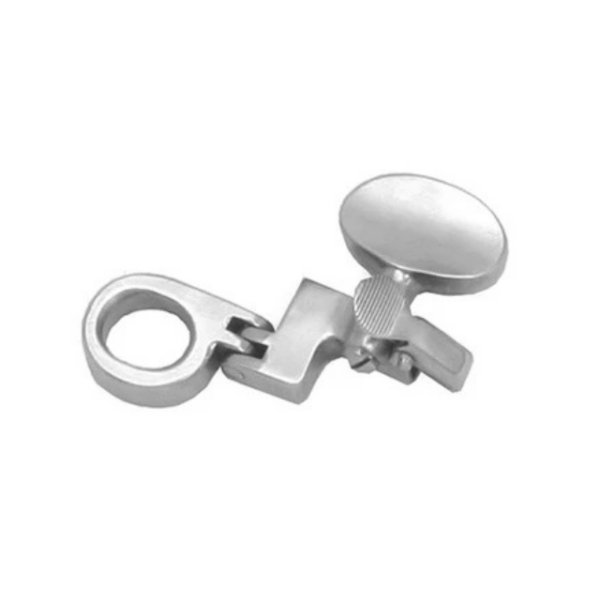

is a specialized drive unit engineered exclusively for the Bookwalter IMA Retractor System. It mounts onto the IMA cross bar to control the vertical lift of attached IMA retractor blades during Internal Mammary Artery harvesting. Unlike standard abdominal or pelvic ratchets that move in fixed, larger linear steps, this unit uses a micro twist mechanism to raise the sternal border and costal margin in precise vertical increments of less than 1 mm.

Controlled chest wall elevation is critical during Coronary Artery Bypass Grafting (CABG) when preparing the internal thoracic artery. The micro twist ratchet allows surgical personnel to apply gradual lifting pressure to the ipsilateral hemithorax. Raising the chest wall in sub-millimeter increments prevents sudden mechanical tension on surrounding rib cartilage and intercostal structures, maintaining clear, stable exposure of the vascular pedicle throughout the harvest.

Each hook and attached retractor blade is adjusted independently using its own ratchet unit. Operating room teams typically mount two IMA Ratchet Mechanisms onto the cross bar, allowing separate height and tension adjustments along different points of the sternal margin. This independent control allows surgeons to balance lifting forces based on specific patient ribcage geometry and procedural access needs.

This device functions exclusively within the specialized Bookwalter IMA Retractor System framework and does not fit standard Bookwalter abdominal or pelvic ring frames. Healthcare facilities acquire the standalone mechanism to replace worn drive units, replace misplaced components, or add extra lifting stations to existing cardiac trays. Central sterile processing personnel can clean, inspect, and autoclave the stainless steel assembly using standard hospital instrument protocols.

Key Features

• Exact Component Identification: The Bookwalter IMA Ratchet Mechanism provides micro-adjustable vertical chest wall elevation within the Bookwalter IMA System.

• Micro Twist Sub-Millimeter Adjustment: Features a fine-threaded micro twist drive that elevates attached retractor hooks in increments under 1 mm for exact height control.

• Independent Hook Control: Operates as an isolated drive unit, allowing surgical staff to adjust individual retractor blades independently to match chest wall contours.

• Controlled Chest Wall Lifting: Distributes vertical force smoothly along the costal margin, preventing abrupt tissue stress or cartilage trauma during arterial harvesting.

• Simple Setup and Operation: Slides directly onto the 12-inch IMA cross bar and locks into position without complex assembly tools.

• Surgical-Grade Stainless Steel Construction: Forged from solid non-magnetic stainless steel to withstand high lifting loads and resist surface pitting, corrosion, and wear.

• Exclusive System Compatibility: Designed specifically for the geometry of the Bookwalter IMA Retractor System to ensure rigid mechanical alignment.

Compatibility

The Bookwalter IMA Ratchet Mechanism is engineered exclusively for compatibility with Bookwalter IMA System components, including:

• Bookwalter IMA Cross Bar (12-inch / 30 cm)

• Bookwalter IMA Retractor Blades

• Bookwalter Vertical Extension Bar and Post Coupler assemblies

• Complete Bookwalter IMA Retractor System sets

Note: This component is not compatible with standard Bookwalter abdominal oval, segmented, or perineal ring frames.

Common Surgical Applications

The Bookwalter IMA Ratchet Mechanism serves as the primary vertical drive component during specialized cardiothoracic procedures:

• Internal Mammary Artery (IMA) Harvesting: Delivers fine, incremental elevation of the sternal edge during left or right internal thoracic artery dissection.

• Coronary Artery Bypass Grafting (CABG): Maintains stable, hands-free chest wall suspension while preparing arterial conduit grafts for revascularization.

• Cardiothoracic Surgery: Provides controlled anterior thoracic lifting during specialized open chest procedures.

• Cardiac Surgery: Holds costal margins elevated during anterior mediastinal approaches and cardiac revascularization operations.

• Open Chest Procedures: Supports precise tissue elevation where sub-millimeter height control is required to protect thoracic structures.

Practical Benefits for Healthcare Facilities

• Precise Incremental Lifting: Fine-pitch micro twist drive allows surgical teams to adjust chest wall elevation accurately, maintaining stable vessel access.

• Independent Hook Adjustment: Allows separate positioning of multiple retractor blades along the sternal border to accommodate varying patient anatomy.

• Reliable System Maintenance: Replacing individual worn or missing ratchet units restores full functional capability to cardiac retractor sets without requiring complete system replacement.

• Simplified Sterile Processing: Solid stainless steel construction allows straightforward pre-cleaning, automated washing, and standard steam sterilization.

• Cost-Effective Tray Management: Sourcing individual replacement parts helps hospitals keep specialized cardiothoracic instrument sets active and ready for routine surgical schedules.

• Direct Compatibility: Manufactured to standard Bookwalter IMA specifications for immediate integration into existing hospital cardiac inventory.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Specialized Manufacturer: Dedicated production of high-precision surgical retractors and replacement components

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Production Lead Time: Average lead time of 12–16 days for standard fulfillment

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for cardiothoracic, general, urologic, and gynecologic surgery.

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, extension bars, and ratchet mechanisms.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, Deaver, and specialized IMA blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What is the Bookwalter IMA Ratchet Mechanism?

The Bookwalter IMA Ratchet Mechanism is a specialized stainless steel drive unit that mounts on the IMA cross bar. It provides micro-adjustable vertical elevation of retractor blades during internal mammary artery harvesting.

Which retractor system is it compatible with?

This ratchet is compatible exclusively with the Bookwalter IMA Retractor System. It does not fit standard Bookwalter abdominal or pelvic ring frames due to its specialized mounting geometry.

How does the micro twist ratchet work?

The micro twist ratchet uses a fine-threaded drive knob that advances the retractor hook vertically in steps of less than 1 mm, allowing fine control over chest wall elevation.

Can each hook be adjusted independently?

Yes. Each IMA Ratchet Mechanism functions independently on the cross bar, allowing surgical staff to adjust the height and tension of individual retractor blades separately along the sternal margin.

Is the Bookwalter IMA Ratchet Mechanism reusable and autoclavable?

Yes. Manufactured from non-magnetic, surgical-grade stainless steel, the mechanism is 100% reusable and fully autoclavable using standard hospital steam sterilization protocols.

How can I request pricing or bulk supply?

Hospitals, medical distributors, and procurement managers can request formal B2B price quotations, bulk discount details, and shipping timelines through our Request a Quote page or by contacting our team via our Contact Support page.
