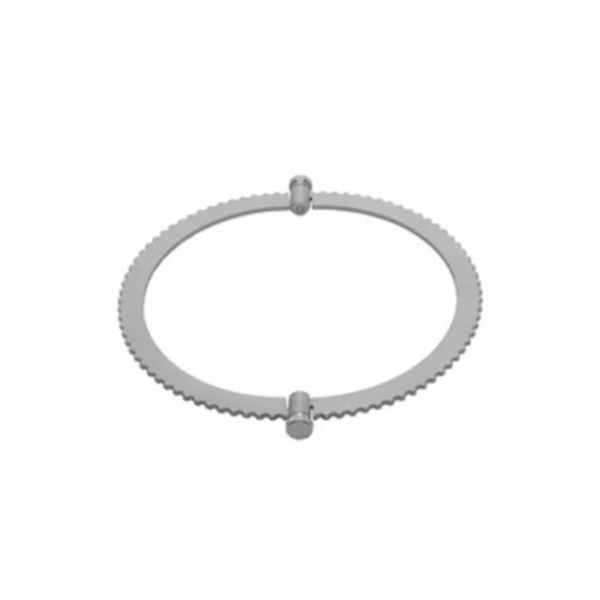

Bookwalter Half Circle Rings

are modular curved ring segments used to build customized retractor ring configurations within the Bookwalter Retractor System. Suspended over the operative site via a vertical field post and horizontal flex bar, these curved sections form the primary perimeter frame for mounting ratchets and retractor blades. Using modular ring segments allows surgical teams to adjust the footprint, radius, and shape of the retractor frame to match specific patient anatomies and incision geometries.

These curved segments are deployed in pairs to create a complete circular frame. Connecting two matching 8.5-inch, 10.5-inch, or 12.5-inch half-circle segments forms a rigid round ring frame. Furthermore, operating room personnel can insert Bookwalter Straight Ring Segments between the two half-circle ends to convert the assembly into an elongated oval configuration. This modular interchangeability enables surgical technicians to reconfigure a single instrument tray for different procedural requirements.

Available in three distinct curvature sizes, the half-circle rings accommodate varied surgical approaches:

• 8.5-Inch Half Circle Rings (21.6 cm): Used in pairs to assemble compact 8.5-inch round frames or combined with short straight segments for small abdominal, pediatric, or deep pelvic approaches.

• 10.5-Inch Half Circle Rings (26.7 cm): The most widely used curved size, forming standard 10.5-inch round or medium oval frames for general abdominal surgery.

• 12.5-Inch Half Circle Rings (31.8 cm): The largest curved segments, creating 12.5-inch round or extended oval frames for long incisions and high-BMI patient procedures.

This replacement component is manufactured to standard Bookwalter-style dimensions, allowing direct integration into existing hospital retractor system inventories. Central sterile processing personnel can clean, inspect, and autoclave the stainless steel segments using standard hospital washing and steam sterilization protocols. Sourcing individual replacement half-circle segments enables healthcare facilities to rebuild incomplete segmented sets or add extra frame-building capabilities without purchasing full retractor assemblies.

Key Features

• Exact Component Identification: Bookwalter Half Circle Rings provide modular curved perimeter frame sections for building custom round or oval retractor assemblies.

• Modular Frame Assembly: Connects in pairs to form complete round rings or integrates with straight ring segments to form elongated oval configurations.

• Three Functional Size Options: Offered in 8.5-inch, 10.5-inch, and 12.5-inch sizes to match specific incision dimensions and patient body habitus.

• Full Circumferential Blade Mounting: Smooth outer rail permits unrestricted placement and sliding of standard, tilt, and self-retaining ratchets along the curved perimeter.

• Surgical-Grade Stainless Steel Construction: Forged from solid non-magnetic stainless steel to withstand high mechanical loads and resist pitting, corrosion, and wear.

• Universal Bookwalter Compatibility: Engineered to standard Bookwalter-style tolerances for broad interchangeability across existing field posts, horizontal flex bars, and straight segments.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments without connection wear or binding.

Common Surgical Applications

Bookwalter Half Circle Rings serve as core modular frame components within table-mounted retractor systems across multiple disciplines:

• General Surgery: Assembles into medium or large oval frames when joined with straight segments to support multi-vector tissue exposure during open laparotomies and bowel resections.

• Abdominal Surgery: Forms 10.5-inch or 12.5-inch round frames for exploratory abdominal procedures, ventral hernia repairs, and subtotal gastrectomies.

• Urology: Provides customizable frame geometry for deep retroperitoneal access during open radical nephrectomies, adrenalectomies, and radical cystectomies.

• Gynecology: Assembles into compact round or oval frames for open abdominal hysterectomies, myomectomies, and pelvic staging operations.

• Hepatobiliary Surgery: Connects with straight segments to extend frame length over the costal margin during open cholecystectomies and liver resections.

• Vascular Surgery: Delivers a rigid, adaptable perimeter for multi-point retraction during open abdominal aortic aneurysm (AAA) repairs.

Practical Benefits for Healthcare Facilities

• Customizable Frame Configurations: Allows operating room teams to build round or oval retractor frames tailored to specific patient anatomies and incision vectors.

• Three Curvature Sizes: Choice of 8.5-inch, 10.5-inch, and 12.5-inch segments provides flexibility across pediatric, adult, and bariatric surgical cases.

• Reduced Instrument Tray Footprint: Storing modular half-circle and straight segments replaces the need to keep multiple dedicated solid rings in active tray storage.

• Cost-Effective System Maintenance: Replaces individual lost or damaged curved segments without requiring capital expenditure for complete new retractor systems.

• Direct System Compatibility: Integrates into standard Bookwalter-style instrument sets, fitting existing field posts, horizontal flex bars, and ratchets.

• Simplified Sterile Processing: Smooth stainless steel construction allows straightforward pre-cleaning, automated washing, and standard autoclave packaging.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Specialized Manufacturer: Dedicated production of high-precision surgical retractors and replacement components

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Production Lead Time: Average lead time of 12–16 days for standard fulfillment

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for general, urologic, gynecologic, and small incision surgery.

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, horizontal flex bars, Standard Ratchets, and Tilt Ratchets.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, and Deaver blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What are the Bookwalter Half Circle Rings?

The Bookwalter Half Circle Rings are curved stainless steel ring segments used to build customized retractor frames. They connect in pairs to form round rings or combine with straight ring segments to form oval frames.

What sizes are available for Bookwalter Half Circle Rings?

They are available in three sizes: 8.5 inches (21.6 cm), 10.5 inches (26.7 cm), and 12.5 inches (31.8 cm).

How do half-circle rings combine to form different frame shapes?

Two matching half-circle segments connect directly to form a complete round ring. Inserting Bookwalter Straight Ring Segments between the two half-circle ends creates an elongated oval ring frame.

Are these half-circle segments compatible with standard Bookwalter systems?

Yes. They are manufactured to standard Bookwalter-style specifications, making them fully compatible with standard Bookwalter-style field posts, horizontal flex bars, straight segments, and ratchet mechanisms.

Are Bookwalter Half Circle Rings reusable and autoclavable?

Yes. Manufactured from non-magnetic, surgical-grade stainless steel, these curved segments are 100% reusable and fully autoclavable using standard hospital steam sterilization protocols.
