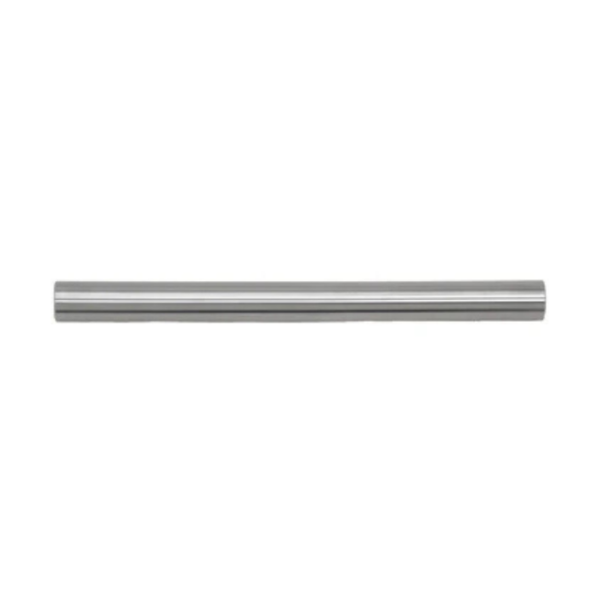

Bookwalter Vertical Extension Bar

increases the vertical height and operational reach of a standard Bookwalter Field Post by up to 10 inches (25 cm). Mounted onto the existing vertical post assembly, it elevates the horizontal support framework further above the operating table. Raising the retractor framework creates additional clearance above the patient, preventing equipment interference during complex surgical setups that require higher frame positioning.

This extension bar must always be used alongside an additional 1″ × 1″ (2.5 cm × 2.5 cm) Bookwalter Post Coupler. The secondary post coupler locks onto the top section of the primary field post while clamping the extension bar in parallel alignment. This dual-bar coupling creates a rigid, non-yielding vertical shaft that maintains structural stability under heavy lateral tissue traction, preventing post leaning or rotational displacement.

Surgical teams deploy the vertical extension bar when standard field post heights do not provide sufficient vertical clearance. It is used during deep operative procedures, bariatric surgeries on high-BMI patients, or cases requiring steep Trendelenburg or reverse Trendelenburg positioning. Elevating the main ring assembly allows surgeons to position horizontal flex bars, ring frames, and tilt ratchets at optimal working angles without obstructing specialized anesthesia equipment or surgical lighting.

This replacement part is manufactured to standard Bookwalter-style dimensions, allowing direct integration into existing hospital retractor system inventories. Central sterile processing personnel can clean, inspect, and autoclave the stainless steel extension bar using standard hospital washing and steam sterilization protocols. Sourcing individual extension bars allows healthcare facilities to adapt their current inventory for high-clearance procedures without purchasing specialized tall field posts.

Key Features

• Exact Component Identification: The Bookwalter Vertical Extension Bar adds up to 10 inches (25 cm) of height to standard vertical field posts.

• Increased Vertical Clearance: Raises horizontal bars and ring frames further above the operative field to clear specialized surgical positioning or patient body habitus.

• Dual-Coupler Mounting Assembly: Pairs with a 1″ × 1″ Post Coupler to form a rigid structural bridge with the primary field post.

• Surgical-Grade Stainless Steel Construction: Forged from solid non-magnetic stainless steel to withstand high mechanical loads and resist surface pitting, corrosion, and wear.

• Universal Bookwalter Compatibility: Engineered to standard 1-inch Bookwalter-style tolerances for broad interchangeability across existing field posts, couplers, and flex bars.

• Passivated Anti-Glare Finish: Features a smooth passivated finish that reduces glare from overhead surgical lamps while remaining easy to clean.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments without finish degradation.

Common Surgical Applications

The Bookwalter Vertical Extension Bar serves as an elevation component within table-mounted retractor systems across multiple disciplines:

• Bariatric Surgery: Provides additional vertical clearance over thick abdominal walls in high-BMI patients, allowing proper horizontal flex bar alignment.

• Deep Pelvic Surgery: Elevates the retractor ring frame to establish appropriate blade retraction angles during deep retroperitoneal and pelvic exenterations.

• Cardiothoracic & Upper Abdominal Surgery: Elevates the mounting framework during complex diaphragm and upper quadrant procedures to clear specialized thoracic equipment.

• Urology: Delivers extended post height for elevated table setups during open radical nephrectomies and radical cystectomies.

• Gynecology: Maintains clear working space above the operative field during extensive abdominal staging hysterectomies and pelvic reconstructive procedures.

• Spine & Vascular Surgery: Elevates retractor ring frames during open anterior abdominal approaches to the spine and vascular bypass operations.

Practical Benefits for Healthcare Facilities

• Expands Standard Field Post Capability: Converts standard vertical field posts into high-clearance support columns, avoiding the cost of specialized extra-tall field posts.

• Adaptable Vertical Setup: Adds up to 10 inches of height, giving surgical teams flexibility when configuring retractor systems for varying patient anatomies.

• Uncompromising Mounting Rigidity: Connecting via a heavy-duty 1″ × 1″ post coupler prevents post flexing or movement under high tissue tension.

• Cost-Effective System Enhancement: Expands the clinical utility of existing hospital retractor trays without requiring capital expenditure for new retractor systems.

• Direct System Compatibility: Integrates into standard Bookwalter-style instrument sets, fitting existing field posts, horizontal flex bars, and post couplers.

• Simplified Sterile Processing: Solid cylindrical stainless steel construction allows straightforward pre-cleaning, automated washing, and standard autoclave packaging.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Specialized Manufacturer: Dedicated production of high-precision surgical retractors and replacement components

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Production Lead Time: Average lead time of 12–16 days for standard fulfillment

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for general, urologic, gynecologic, and small incision surgery.

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, horizontal flex bars, Standard Ratchets, and Tilt Ratchets.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, and Deaver blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What is the Bookwalter Vertical Extension Bar?

The Bookwalter Vertical Extension Bar is a stainless steel extension post that adds up to 10 inches (25 cm) of vertical height to a standard Bookwalter Field Post.

Why is an additional post coupler required?

The extension bar must be connected to the primary field post using a 1″ × 1″ Post Coupler. The coupler clamps both posts together in parallel alignment to form a rigid structural connection that prevents slipping or leaning under load.

How much additional height does it provide?

It provides up to 10 inches (25 cm) of additional vertical elevation above the standard field post height.

When should a surgical team use a vertical extension bar?

It is used when standard field post heights are insufficient, such as in bariatric procedures on high-BMI patients, deep pelvic operations, or surgeries requiring steep table tilting and high clearance over the patient.

Is it compatible with standard Bookwalter systems?

Yes. It is manufactured to standard 1-inch Bookwalter-style specifications, making it fully compatible with standard Bookwalter-style field posts, post couplers, horizontal flex bars, and retractor rings.

Is the Bookwalter Vertical Extension Bar reusable and autoclavable?

Yes. Manufactured from non-magnetic, surgical-grade stainless steel, the extension bar is 100% reusable and fully autoclavable using standard hospital steam sterilization protocols.

How can I request pricing or bulk supply?

Hospitals, medical distributors, and procurement managers can request formal B2B price quotations, bulk discount details, and shipping timelines through our Request a Quote page or by contacting our team via our Contact Support page.
