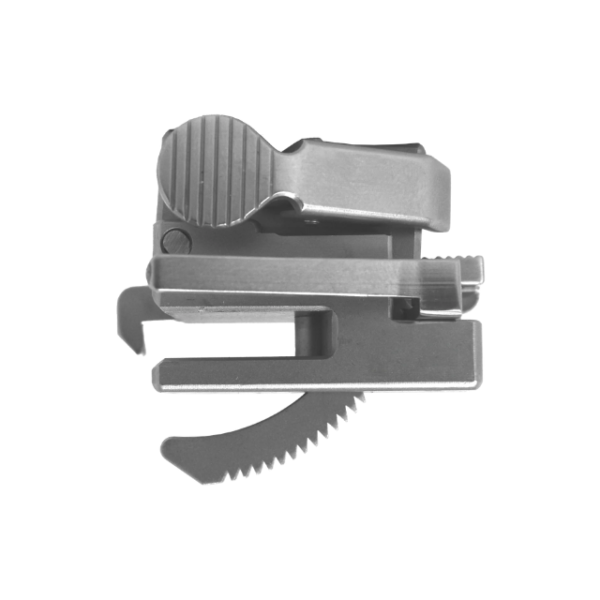

Bookwalter Self-Retaining Tilt Ratchet

attaches surgical retractor blades to a Bookwalter ring frame while providing mechanical retention to keep the component secured during intraoperative movement. Equipped with an independent spring-loaded clip, the ratchet snaps onto the perimeter of solid or segmented ring frames. This clip holds the ratchet body firmly in place on the ring, preventing it from slipping off or accidentally falling into or outside the sterile field during intraoperative positioning.

In active operating rooms, unclipped retractor ratchets can shift or disengage when bumped by surgical staff or when blade tension is momentarily relaxed. The integrated spring clip maintains positive clamping force around the ring perimeter independently of blade tension. This self-retaining engagement stabilizes the ratchet body during initial tray assembly, blade adjustments, and full tissue retraction.

Beyond its retention feature, the component includes a multi-directional tilt mechanism that allows surgeons to angle blades upward and outward. Tilting the retractor blade lifts abdominal walls and costal margins away from underlying cavity structures, maintaining an open line of sight during deep surgical dissections. The linear ratchet drive accepts standard notched blade shanks, advancing and locking them in place.

This replacement part is manufactured to standard Bookwalter-style dimensions, allowing direct integration into existing hospital retractor system inventories. Central sterile processing personnel can clean, inspect, and autoclave the stainless steel assembly using standard hospital washing and steam sterilization protocols. Sourcing individual self-retaining ratchets enables healthcare facilities to update their existing retractor sets with improved retention features without replacing entire systems.

Key Features

• Exact Component Identification: The Bookwalter Self-Retaining Tilt Ratchet provides snap-on ring retention and multi-directional blade tilting along Bookwalter ring frames.

• Independent Spring-Loaded Retention Clip: Features an integrated spring clip that clamps around the ring frame perimeter to prevent accidental disengagement or dropping.

• Secure Snap-On Ring Attachment: Mounts firmly onto ring frames with a tactile snap, holding its position even when retractor blade tension is relaxed.

• Multi-Directional Blade Positioning: Permits angular blade tilting upward and outward to lift tissue edges and improve deep surgical exposure.

• Positive Linear Locking Drive: Engages blade shaft notches firmly with an internal pawl to prevent blade slipping under tissue loads.

• Surgical-Grade Stainless Steel Construction: Forged from solid non-magnetic stainless steel to withstand high mechanical tension and resist surface pitting, corrosion, and wear.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments.

Common Surgical Applications

The Bookwalter Self-Retaining Tilt Ratchet serves as a secure blade-holding mechanism within table-mounted retractor systems across multiple disciplines:

• General Surgery: Holds abdominal wall and visceral blades during open exploratory laparotomies, complex ventral hernia repairs, and bowel resections.

• Urology: Elevates rib margins and retroperitoneal tissue during open radical nephrectomies, adrenalectomies, and radical cystectomies.

• Gynecology: Maintains upward and outward traction during open abdominal hysterectomies, myomectomies, and deep pelvic staging procedures.

• Colorectal Surgery: Holds deep pelvic blades in position during colectomies, proctectomies, and low anterior resections.

• Hepatobiliary Surgery: Angles liver and rib margin blades during open cholecystectomies and hepatic dissections.

• Vascular Surgery: Maintains stable abdominal wall elevation during open abdominal aortic aneurysm (AAA) repairs and peripheral bypasses.

Practical Benefits for Healthcare Facilities

• Improved Component Retention: Spring-loaded clip prevents the ratchet from accidentally detaching or falling off the ring during setup and adjustment.

• Faster Operating Room Setup: Snap-on design allows surgical technicians to position ratchets along the ring frame quickly without losing placement.

• Enhanced Surgical Workflow: Eliminates delays caused by re-sterilizing or replacing dropped components during procedures.

• Direct System Compatibility: Fits standard Bookwalter-style ring frames and notched retractor blades across existing hospital trays.

• Simplified Sterile Processing: Solid stainless steel build allows straightforward pre-cleaning, automated washing, and standard autoclave packaging.

• Cost-Effective Tray Maintenance: Replaces worn or lost ratchets individually to keep complete retractor sets in active service.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Specialized Manufacturer: Dedicated production of high-precision surgical retractors and replacement components

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Production Lead Time: Average lead time of 12–16 days for standard fulfillment

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for general, urologic, gynecologic, and small incision surgery.

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, horizontal flex bars, Standard Ratchets, and Tilt Ratchets.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, and Deaver blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What is the Bookwalter Self-Retaining Tilt Ratchet?

The Bookwalter Self-Retaining Tilt Ratchet is a stainless steel clamping mechanism that snaps onto a Bookwalter ring frame using an independent spring-loaded clip. It holds retractor blades securely while providing upward and outward blade tilting.

How does the spring-loaded clip work?

The spring-loaded clip clamps directly around the outer perimeter of the retractor ring. It maintains constant holding pressure on the ring frame, preventing the ratchet from falling off or slipping even when retractor blade tension is disengaged.

Which Bookwalter systems is it compatible with?

It is compatible with standard Bookwalter-style retractor systems, solid oval, segmented, or round ring frames, and standard notched retractor blades.

Does it help prevent accidental detachment from the ring?

Yes. The spring clip keeps the ratchet anchored to the ring frame during setup, blade adjustments, and surgery, preventing accidental disengagement or dropping.

Is it reusable and autoclavable?

Yes. Manufactured from non-magnetic, surgical-grade stainless steel, the ratchet is 100% reusable and fully autoclavable using standard hospital steam sterilization protocols.

How can I request pricing or bulk supply?

Hospitals, medical distributors, and procurement managers can request formal B2B price quotations, bulk discount details, and shipping timelines through our Request a Quote page or by contacting our team via our Contact Support page.
