Bookwalter Posterior Spinal Retractor
Maintaining unobstructed access to the paraspinal muscle bed and vertebral elements during posterior spine surgery requires firm, rigid tissue elevation. The Bookwalter Posterior Spinal Retractor mounts securely to standard operating table rails to deliver stable, hands-free exposure across cervical, thoracic, and lumbar procedures. By maintaining continuous lateral holding force against thick paraspinal musculature, this self-retaining setup helps reduce manual strain for assistant staff while preserving clear visualization for the surgical team.
Orthopedic spine surgeons, neurosurgeons, and surgical centers rely on this specialized setup because it offers customizable ring frame dimensions tailored to single-level or multi-level spinal interventions. The modular ring system incorporates curved half-circle segments along with straight segments in 4-inch, 6-inch, and 8-inch lengths, allowing sterile personnel to construct rectangular or custom-shaped frames that match the incision length. Equipped with specialized Meyerding blades, Scoville hooks, and multi-prong rake attachments, the assembly provides targeted retraction depth and tissue control. Manufactured directly by Retractor Maker to standard Bookwalter-style dimensions, this complete set offers medical distributors and hospital procurement departments a dependable, high-utility surgical resource.
Key Features
-
Table-Mounted Rigid Post Setup: Secures firmly to side rails via a heavy-duty post coupler to maintain fixed frame stability throughout bone work and hardware placement.
-
Modular Segmented Ring System: Combines half-circle curved segments with 4-inch, 6-inch, and 8-inch straight segments to build custom ring lengths for short or extended spinal incisions.
-
Specialized Meyerding Blades: Features multiple sizes of notched Meyerding blades engineered to grip bone edges and prevent muscle tissue from slipping into the operative field.
-
Scoville Hooks & Multi-Prong Rakes: Includes small and large Scoville hooks along with 3-prong, 4-prong, and 6-prong rakes for delicate tissue retraction and paraspinal muscle holding.
-
Dual Ratchet Selection: Combines standard non-tilt ratchets and multi-angle tilt ratchets to give operating personnel precise control over blade elevation, angle, and holding tension.
-
Compartmentalized Sterilization Box: Keeps all specialized blades, hooks, ring segments, and mounting hardware organized for safe transport, counting, and autoclave processing.
Surgical Applications
-
Lumbar Spine Surgery: Holds thick paraspinal muscles open effectively during posterior lumbar interbody fusion (PLIF), transforaminal lumbar interbody fusion (TLIF), and laminectomies.
-
Thoracic Spine Procedures: Provides stable, unobstructed access during posterior thoracic decompression, stabilization, and deformity correction.
-
Cervical Spine Surgery: Delivers controlled tissue retraction during posterior cervical laminectomies, laminoplasties, and posterior cervical fusion operations.
-
Spine Trauma Surgery: Maintains steady exposure during emergency spinal fracture fixation and posterior decompression procedures.

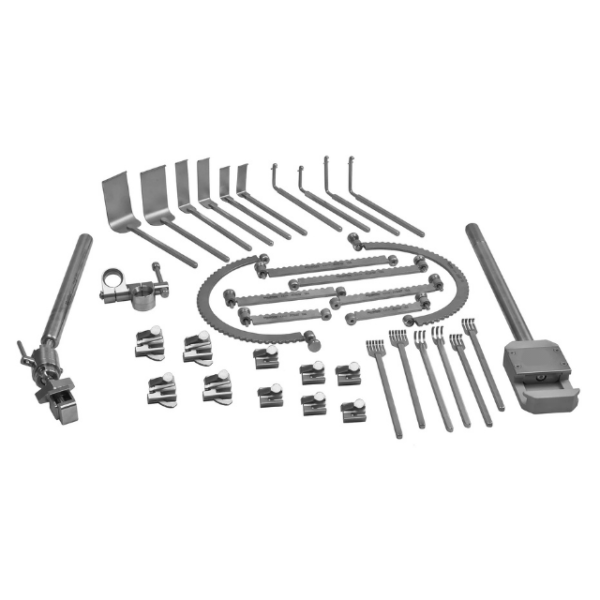

Included Components
| Component Name |
Dimension / Specification |
Quantity Included |
| Field Post |
12″ (30.5 cm) |
1 |
| Post Coupler |
Standard |
1 |
| Horizontal Bar |
1″ Diameter (2.5 cm) |
1 |
| Standard Ratchets |
Non-Tilt |
6 |
| Tilt Ratchet Mechanisms |
Multi-Angle |
4 |
| Half Circle Ring Segments |
8½″ Diameter (21.6 cm) |
1 |
| Straight Ring Segment |
4″ Diameter (10.2 cm) |
1 |
| Straight Ring Segment |
6″ Diameter (15.2 cm) |
1 |
| Straight Ring Segment |
8″ Diameter (20.3 cm) |
1 |
| Meyerding Blades |
⅔″ × 2⅓″ (1.7 × 5.9 cm) |
2 |
| Meyerding Blades |
1″ × 3⅓″ (2.5 × 8.5 cm) |
2 |
| Meyerding Blades |
2″ × 3¾″ (5.1 × 9.5 cm) |
2 |
| Scoville Hooks |
Small |
2 |
| Scoville Hooks |
Large |
2 |
| 3-Prong Rakes |
⅔″ Wide × ¾″ Deep (1.7 × 1.9 cm) |
2 |
| 4-Prong Rakes |
¾″ Wide × ⅓″ Deep (1.9 × 0.8 cm) |
2 |
| 6-Prong Rakes |
1″ Wide × ⅓″ Deep (2.5 × 0.8 cm) |
2 |
| Sterilization Box |
Protective Case |
1 |
Practical Benefits for Healthcare Facilities
-
Configurable Exposure Lengths: Interchangeable straight and curved ring segments allow surgical teams to construct narrow or extended frames based on the number of vertebral levels involved.
-
Targeted Paraspinal Muscle Holding: Specialized Meyerding blades and rake attachments maintain steady lateral pressure against dense muscle tissue without slipping.
-
Streamlined Central Sterile Processing: Structured storage box compartments simplify pre-operative counting, washing, inspection, and autoclaving workflows for processing staff.
-
Cost-Effective Tray Management: Standardized component dimensions allow facilities to replace individual worn ratchets or add extra blades without purchasing complete new sets.
-
Hands-Free Operating Room Efficiency: Table-anchored retraction holding muscle tissue clear allows assistant staff to focus on instrument passing and suction rather than manual retractor holding.
Why Choose Retractor Maker
Retractor Maker is a reputable manufacturer and supplier specializing in surgical retractors for medical procedures. We manufacture high-quality retractors using modern production facilities and experienced professionals.
-
Established: 2023
-
Workforce: 50+ surgical instrument professionals
-
Satisfied Customers: 500+ healthcare facilities and distributors worldwide
-
Average Lead Time: 12–16 days for standard fulfillment
-
Quality Assurance: Strict quality control and management procedures on every system
-
Global Supply: Worldwide shipping with complete export documentation
Looking for additional surgical solutions?
Browse our complete line of surgical retractors on our corporate site. For healthcare facilities performing cranial operations or anterior cervical procedures requiring specialized holding arms, explore our dedicated Leyla Retractor line for neurosurgical applications.
Frequently Asked Questions (FAQs)
What is the Bookwalter Posterior Spinal Retractor used for?
It is a table-mounted, self-retaining surgical retractor designed to provide stable tissue elevation and exposure during posterior cervical, thoracic, and lumbar spine operations.
How does the modular ring frame system work?
The set includes an 8½-inch half-circle segment plus 4-inch, 6-inch, and 8-inch straight segments. Surgical staff can connect these pieces to build custom oval or elongated rectangular frames matching the length of the spinal incision.
What specialized blades and attachments are included for spine surgery?
The set includes 6 Meyerding blades across three sizes, 4 Scoville hooks (small and large), and 6 multi-prong rake retractors (3-prong, 4-prong, and 6-prong) tailored for paraspinal muscle holding and bone contact.
Is this system compatible with standard Bookwalter-style components?
Yes. Manufactured to standard Bookwalter-style dimensions, this system is designed for compatibility with standard Bookwalter-style surgical retractor components, including field posts, ratchets, and ring frames across our primary Bookwalter Retractor line and broader Bookwalter Retractor Systems collection.
Can replacement blades, hooks, or extra ratchets be ordered separately?
Yes. Healthcare facilities and supply distributors can source individual components in our Bookwalter Retractor Blades and Bookwalter Retractor Parts sections.
How can I request a formal quotation or lead time estimate?
Formal B2B pricing, volume discounts, and shipping estimates can be requested through our Request a Quote page or by reaching out directly to our sales team.
Request Your B2B Quotation
Ready to equip your orthopedic and neurosurgical suites with factory-direct retractor systems? Retractor Maker provides prompt quotations, custom ordering support, and reliable international fulfillment for hospitals, surgical centers, and medical device distributors worldwide.
