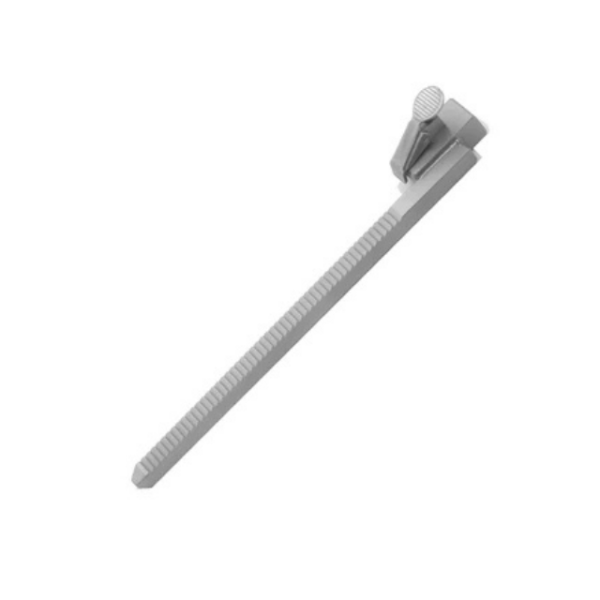

Bookwalter Ratchet Extender

extends the working handle length of standard Bookwalter and ratchet-style retractor blades by approximately 6 inches (15.2 cm). It connects directly between the blade handle and the main ring ratchet, bridging the gap when standard blade shanks cannot reach the deep surgical site. By extending blade placement, this accessory allows operating room teams to maintain stable tissue retraction without forcing ring frames lower into the sterile field.

To assemble the unit, surgical staff insert the handle of any compatible Bookwalter blade into the ratchet end of the extender. The opposite end shaft of the extender is then inserted into a Bookwalter Tilt Ratchet mounted on the ring frame. This dual-connection mechanism locks both components firmly together, transmitting mechanical holding tension across the extended length while preventing rotational displacement during use.

Providing additional reach is critical during bariatric operations, deep pelvic resections, and complex retroperitoneal dissections where deep abdominal fat walls or high patient BMI limit standard frame access. Using the ratchet extender allows surgeons to deploy standard inventory blades deep into cavity structures, eliminating the immediate necessity of purchasing specialized extra-long blades for occasional deep-access cases.

This replacement part is manufactured to standard Bookwalter-style dimensions, allowing integration into existing surgical retractor system inventories. Central sterile processing personnel can clean, inspect, and autoclave the stainless steel assembly using standard hospital washing and steam sterilization protocols. Sourcing individual extension components enables healthcare facilities to expand the working capability of current retractor sets cost-effectively.

Key Features

• Exact Component Identification: The Bookwalter Ratchet Extender adds approximately 6 inches (15.2 cm) of mechanical extension to standard retractor blade handles.

• Dual-Connection Attachment Design: Receives standard blade shanks in its integrated ratchet head while its male shaft locks securely into standard Bookwalter Tilt Ratchets.

• Extended Deep Cavity Reach: Allows standard inventory blades to reach deep surgical targets in bariatric and pelvic operations without frame displacement.

• Surgical-Grade Stainless Steel Construction: Forged from solid non-magnetic stainless steel to withstand high retraction loads without structural flexing.

• Universal Bookwalter Compatibility: Engineered to standard Bookwalter-style tolerances for broad interchangeability across standard blades, tilt ratchets, and ring frames.

• Fully Reusable & Autoclavable: Withstands repeated high-temperature steam sterilization cycles in central sterile processing departments.

• Passivated Anti-Glare Finish: Features a passivated surface finish that reduces glare under operating room lighting while remaining easy to clean.

Common Surgical Applications

The Bookwalter Ratchet Extender acts as an extension accessory within table-mounted retractor systems across multiple disciplines:

• Bariatric Surgery: Provides extended blade depth to clear thick abdominal walls during open bariatric interventions and gastric procedures.

• Pelvic Surgery: Reaches deep pelvic structures during total pelvic exenterations and deep retroperitoneal dissections.

• Colorectal Surgery: Maintains deep tissue elevation during low anterior resections, colectomies, and proctectomies.

• Gynecological Surgery: Extends blade access to the lower pelvic floor during deep pelvic staging and complex abdominal hysterectomies.

• Urology: Assists in deep tissue holding during open radical cystectomies, prostatectomies, and retroperitoneal exposures.

• General Surgery: Adapts standard blades for deep abdominal procedures where extra handle reach is required.

Practical Benefits for Healthcare Facilities

• Extended Blade Functionality: Converts standard retractor blades into extended-reach instruments, reducing the need to stock specialized extra-long blades.

• Improved Deep Exposure: Enables stable retraction in high-BMI patients by bridging the distance between the ring frame and deep anatomical sites.

• Cost-Effective Tray Modularity: Expands the procedural versatility of existing Bookwalter trays without requiring major capital expenditure.

• Reliable Mechanical Connection: Dual-locking engagement keeps blades aligned and stable under continuous tissue tension.

• Simplified Sterile Processing: Solid stainless steel build allows straightforward pre-cleaning, automated washing, and standard autoclave packaging.

• Direct Inventory Compatibility: Manufactured to standard Bookwalter dimensions for immediate integration into hospital instrument sets.

Why Choose Retractor Maker

Retractor Maker specializes in manufacturing surgical retractors, standalone replacement parts, and modular accessories for healthcare facilities worldwide.

• Specialized Manufacturer: Dedicated production of high-precision surgical retractors and replacement components

• Established: 2023

• Workforce: 50+ skilled surgical instrument technicians and manufacturing engineers

• Satisfied Customers: 500+ healthcare facilities, surgical centers, and medical distributors globally

• Quality Assurance: Strict quality inspection and dimensional checking applied to every component prior to dispatch

• Worldwide B2B Supply: Complete global shipping capabilities with export documentation and regulatory compliance

• Production Lead Time: Average lead time of 12–16 days for standard fulfillment

Looking for Additional Surgical Solutions?

Retractor Maker supplies a complete range of table-mounted retractor systems, mounting components, and replacement parts:

• Bookwalter Retractor Systems — Explore complete retractor sets configured for general, urologic, gynecologic, and small incision surgery.

• Bookwalter Retractor Parts — Replacement post couplers, vertical field posts, horizontal flex bars, and tilt ratchet mechanisms.

• Bookwalter Retractor Blades — Standard and deep-reach Balfour, Kelly, Malleable, Harrington, and Deaver blades.

• Surgical Retractors — View our full corporate catalog of self-retaining retractor systems across all surgical disciplines on Retractor Maker.

• Leyla Retractor — Discover specialized neurosurgical retractor systems, flexible holding arms, and cranial accessories at Leyla Retractor.

Frequently Asked Questions (FAQs)

What is the Bookwalter Ratchet Extender?

The Bookwalter Ratchet Extender is a stainless steel extension component that adds approximately 6 inches (15.2 cm) of reach to standard Bookwalter retractor blade handles.

How much additional reach does it provide?

It provides approximately 6 inches (15.2 cm) of additional working length between the retractor ring ratchet and the blade head.

Which retractor systems is it compatible with?

It is compatible with standard Bookwalter retractor systems, Bookwalter Tilt Ratchets, and standard notched ratchet-style retractor blades.

How is it attached to the retractor blade?

The handle of a standard retractor blade inserts into the ratchet mechanism on the extender head. The shaft end of the extender then slides into and locks within a Bookwalter Tilt Ratchet mounted on the ring frame.

Is it suitable for bariatric surgery?

Yes. It is specifically used in bariatric and deep pelvic procedures where extra working length is required to reach deep operative fields in high-BMI patients.
