Bookwalter Urology Retractor System

Secure continuous visualization across deep retroperitoneal structures and pelvic urological sites requires specialized holding equipment that conforms to diverse surgical approaches. The Bookwalter Urology Retractor System anchors directly to standard operating table rails to provide surgical teams with hands-free, self-retaining retraction during open urological operations. By maintaining uniform, multi-directional holding tension against abdominal walls or deep flank incisions without relying on manual holding from assistant staff, this setup reduces physical strain in the operating suite while keeping the surgical field unobstructed.

Urology departments, surgical centers, and hospital procurement teams rely on this specialized setup within our broader Bookwalter Retractor Systems line because it solves the spatial and depth challenges of kidney and bladder exposure. A central advantage of this configuration is its dual segmented ring setup. The hinged segments can be configured into eight distinct ring frame dimensions, giving surgical teams virtually unlimited angular positioning to match specific patient anatomies and incision lines.

Paired with a specialized Renal Wylie blade, varied Kelly blades, shapeable malleable options, and vaginal lateral blades, the assembly allows surgeons to retract dense tissue layers cleanly during nephrectomy or cystectomy procedures. Additional Bookwalter Retractor Blades or replacement hardware can be sourced from our Bookwalter Retractor Parts inventory as facility demands grow. Manufactured directly by Retractor Maker to standard Bookwalter-style dimensions, this complete set offers medical supply partners a reliable, high-utility surgical resource.

Key Features

• Dual Reconfigurable Segmented Rings: Includes an 8½″ × 14″ and a 10½″ × 19″ hinged ring frame that assemble into eight different size layouts for customized anatomical access.

• Unlimited Angular Positioning: Hinged ring joints flex smoothly to conform to flank contours and deep anterior abdominal incisions.

• Specialized Renal Wylie Blade: Features a deep-reaching 1″ × 7″ Renal Wylie blade engineered specifically for gentle, deep retroperitoneal tissue elevation near renal pedicles.

• Multi-Angle Tilt Ratchets: Supplied with eight tilt ratchet mechanisms that provide fine control over blade height, depth, and angle within deep cavities.

• Multi-Jointed Flex Bar Mounting: Includes a 1-inch horizontal flex bar that enables smooth post alignment and positioning relative to operating table rails.

• Compartmentalized Sterilization Box: Keeps all segmented frame joints, ratchets, mounting bars, and specialized blades organized for safe transport and autoclave processing.

Surgical Applications

The Bookwalter Urology Retractor System is designed for procedures requiring clear exposure of retroperitoneal, abdominal, and pelvic urological anatomy, including:

• Kidney & Renal Surgery: Delivers steady, deep exposure during open radical nephrectomy, partial nephrectomy, pyeloplasty, and donor nephrectomy procedures.

• Bladder & Pelvic Urology: Maintains clear, hands-free visualization during radical cystectomy, urinary diversion, and complex bladder reconstruction operations.

• Retroperitoneal & Ureteral Access: Provides stable tissue holding during open ureterolithotomy, retroperitoneal lymph node dissection (RPLND), and ureteral reimplants.

• Flank & Anterior Approaches: Adapts to lateral flank incisions for upper tract kidney access as well as lower midline abdominal incisions for pelvic urology.

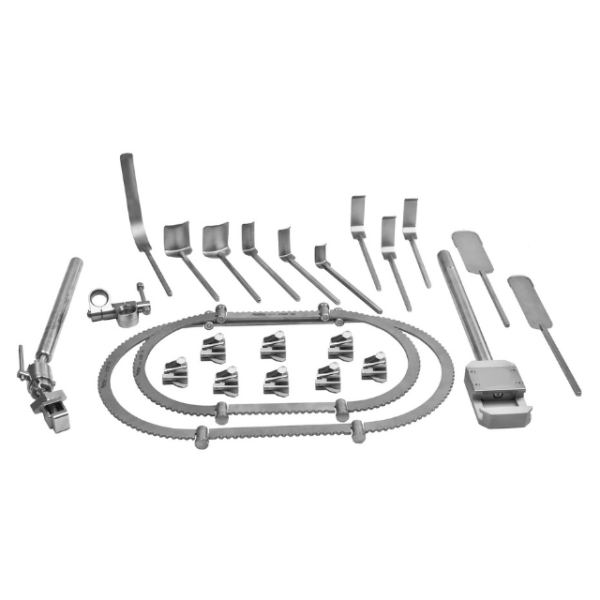

Included Components

Component Name	Dimensions	Quantity Included
Field Post	12″ (30.5 cm)	1
Post Coupler	Standard	1
Horizontal Flex Bar	1″ Diameter (2.5 cm)	1
Tilt Ratchet Mechanisms	Multi-Angle	8
Segmented Ring	10½″ × 19″ (26.7 × 48.3 cm)	1
Segmented Ring	8½″ × 14″ (21.6 × 35.6 cm)	1
Malleable Blade	2″ × 6″ (5.1 × 15.2 cm)	1
Malleable Blade	1½″ × 6″ (3.8 × 15.2 cm)	1
Kelly Blades	1″ × 2½″ (2.5 × 6.4 cm)	2
Kelly Blade	1″ × 1½″ (2.5 × 3.8 cm)	1
Kelly Blades	2″ × 2½″ (5.1 × 6.4 cm)	2
Vaginal Lateral Blades	1″ × 3″ (2.5 × 7.6 cm)	3
Renal Wylie Blade	1″ × 7″ (2.5 × 17.8 cm)	1
Sterilization Box	Protective Case	1

Practical Benefits for Healthcare Facilities

• Versatile Frame Adaptability: Eight possible ring configurations allow surgical teams to adjust frame geometry easily between shallow pelvic and deep flank procedures.

• Targeted Retroperitoneal Exposure: The deep 7-inch Renal Wylie blade provides gentle elevation of retroperitoneal tissue layers near renal structures.

• Streamlined Central Sterile Processing: Structured storage box compartments simplify pre-operative counting, washing, inspection, and autoclaving workflows for processing staff.

• Cost-Effective System Longevity: Standardized component dimensions allow healthcare facilities to replace individual worn ratchets or add extra blades without purchasing complete new sets.

• Hands-Free Operating Room Efficiency: Rigid table-anchored mounting holds incision margins open reliably, allowing assistant surgeons to focus on primary procedural tasks rather than manual holding.

Why Choose Retractor Maker

Retractor Maker is a specialized medical device manufacturer producing surgical retractors for hospitals, surgical centers, and medical distributors worldwide.

• Open Urology Specialization: Configured specifically for procedures requiring flexible ring geometry, deep retroperitoneal reach, and precise flank mounting.

• Standard Compatibility: Manufactured to standard Bookwalter-style dimensions for seamless integration with existing hospital retractor inventory.

• Complete Component Availability: Standalone replacement blades, segmented ring sections, and mounting hardware available separately to support long-term facility maintenance.

• OEM & Private Labeling: Dedicated manufacturing capabilities supporting private labeling and custom configuration requests for global distributors.

• Established Supply Operations: Founded in 2023 with a 50+ technical workforce, 500+ satisfied clients, a 12–16 day average lead time, and full export documentation.

Looking for additional surgical solutions?

Browse our complete catalog of surgical retractors on our main manufacturing site. For facilities performing cranial operations or delicate neurosurgical procedures requiring specialized holding arms, explore our dedicated Leyla Retractor line for neurosurgical applications.

Frequently Asked Questions (FAQs)

What is the Bookwalter Urology Retractor System used for?

It is a self-retaining surgical retractor system designed to provide stable, hands-free exposure during open urological operations, including nephrectomy, partial nephrectomy, pyeloplasty, radical cystectomy, and retroperitoneal dissections.

How do the dual segmented rings benefit urological surgery?

The two segmented ring frames can be reconfigured into eight distinct frame sizes and shapes. Their hinged joints allow surgeons to contour the frame precisely over flank or anterior abdominal incisions depending on patient anatomy.

What is the function of the Renal Wylie Blade included in this set?

The 1″ × 7″ Renal Wylie blade features an extended deep profile specifically designed to retract retroperitoneal tissue and provide clear, safe visualization near renal vessels and pedicles.

Is this system compatible with standard Bookwalter-style components?

Yes. Manufactured to standard Bookwalter-style dimensions, this system is designed for compatibility with standard Bookwalter-style surgical retractor components, including field posts, ratchets, and ring frames across our primary Bookwalter Retractor line.

Can replacement blades, segmented rings, or ratchets be ordered separately?

Yes. Healthcare facilities and supply distributors can source individual components in our Bookwalter Retractor Blades and Bookwalter Retractor Parts sections as facility needs expand.

How can I request a formal quotation or lead time estimate?

Formal B2B pricing, volume discounts, and shipping estimates can be requested through our Request a Quote page or by reaching out directly to our sales team.
