Bookwalter Retractors
Bookwalter Hand Surgery Retractor System
SKU: RM-BHSRS-1
$999
Free Shipping

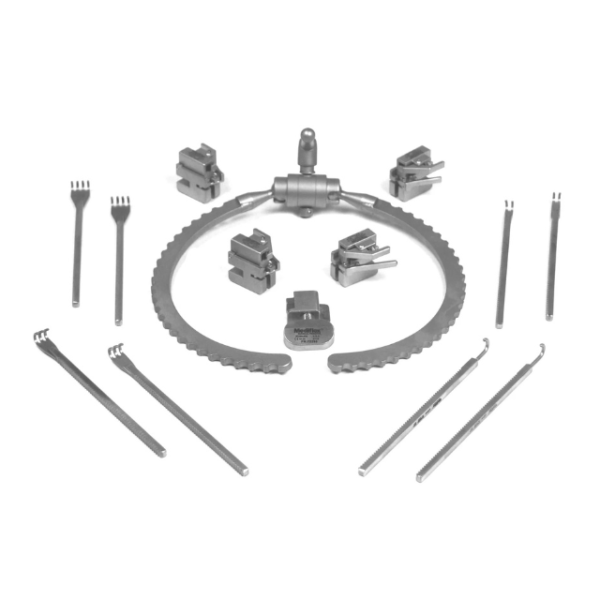

The Bookwalter Hand Surgery Retractor System is a compact self-retaining retractor set built around a 7″ Mini-Bookwalter split ring. It provides stable, hands-free retraction for delicate hand, wrist and upper extremity procedures. Mini tilt ratchets and a twist ratchet position the included single, double, triple and quad hook blades around the operative field. The complete set is manufactured from non-magnetic, surgical-grade stainless steel and supplied in a sterilization box.
Product Description
The Bookwalter Hand Surgery Retractor System is a compact self-retaining retractor system designed to provide stable, hands-free retraction during delicate hand, wrist and upper extremity surgical procedures. The set is built around a 7″ (17.5 cm) Mini-Bookwalter split ring, which forms the working frame around the operative field.
Four mini tilt ratchet mechanisms and a mini twist ratchet secure the included blades to the split ring and allow the angle and tension of each blade to be adjusted independently. The system includes single hook, double hook, triple hook and quad hook Mini-Bookwalter blades, available with sharp or blunt tips, so the blade configuration can be selected to suit the exposure required. A StrongArm Holder is available separately for table mounting.
All components are manufactured from non-magnetic, surgical-grade stainless steel and are supplied in a dedicated sterilization box for organized storage and processing. The system is reusable and fully autoclavable.
The system is supplied non-sterile. It must be cleaned and sterilized according to the healthcare facility's validated procedures before use. Retractor Maker, based in Sialkot, Pakistan, manufactures and supplies this system directly to hospitals, surgeons and distributors.
Product Specifications
| Specification | Details |
|---|---|
| Intended Use | Provides stable, hands-free retraction for delicate hand, wrist, and upper extremity surgical procedures using a compact self-retaining mini retractor system. |
| Primary Material | Non-magnetic, surgical-grade stainless steel |
| Configuration | Complete Hand Surgery Retractor System |
| Mounting System | Mini-Bookwalter Split Ring with Mini Tilt Ratchets and Twist Ratchet (StrongArm Holder available separately) |
| Sterility | Supplied non-sterile (fully autoclavable) |
| Packaging | Supplied in a sterilization box |
| Manufacturer | Retractor Maker |
| Product Condition | Brand new |
| Minimum Order Quantity (MOQ) | 1 Full Set |
Component List
| Quantity | Component | Dimensions / Description |
|---|---|---|
| 2 | Mini-Bookwalter Blade, Single Hook | Standard Mini — sharp or blunt tip |
| 2 | Mini-Bookwalter Blade, Double Hook | Standard Mini — sharp or blunt tip |
| 2 | Mini-Bookwalter Blade, Triple Hook | Standard Mini — sharp or blunt tip |
| 2 | Mini-Bookwalter Blade, Quad Hook | Standard Mini — sharp or blunt tip |
| 1 | Mini-Bookwalter Twist Ratchet | Standard Mini |
| 4 | Mini-Bookwalter Tilt Ratchet Mechanism | Standard Mini |
| 1 | Mini-Bookwalter Split Ring | 7″ (17.5 cm) |
| 1 | Sterilization Box | Protective Case |
Minimum order quantity: 1 Full Set.
Frequently Asked Questions
What is the Bookwalter Hand Surgery Retractor System?
It is a compact self-retaining retractor system built around a 7″ (17.5 cm) Mini-Bookwalter split ring, with mini tilt ratchets, a mini twist ratchet and hook blades, manufactured by Retractor Maker.
What is it intended for?
It provides stable, hands-free retraction for delicate hand, wrist and upper extremity surgical procedures using a compact self-retaining mini retractor system.
What components are included?
The set includes two each of single, double, triple and quad hook Mini-Bookwalter blades, one mini twist ratchet, four mini tilt ratchet mechanisms, one 7″ mini split ring and a sterilization box. A StrongArm Holder is available separately.
What material is it made from?
All components are manufactured from non-magnetic, surgical-grade stainless steel.
Is it supplied sterile?
No. The system is supplied non-sterile and must be cleaned and sterilized according to your facility's validated procedures before use.
Is it reusable and autoclavable?
Yes. The system is reusable and fully autoclavable, and is supplied in a sterilization box for processing and storage.
What is the SKU?
The SKU is RM-BHSRS-1.
What is the minimum order quantity?
The minimum order quantity is 1 full set.
What is the price?
The price is $999.00 USD with free shipping.
How can I order it?
Use the Order by Email button to email info@retractormaker.com, or the Order on WhatsApp button to message us directly. You can also submit the Request a Quote form.
