Bookwalter Retractor Parts and Components Explained
Reviewed by Retractor Maker technical team · Updated
A Bookwalter Retractor system is made up of several components that work together to create a table-mounted, self-retaining retraction framework. Understanding the individual parts makes it easier to see how a complete system is configured.
A Bookwalter Retractor is not a single instrument. It is a system of components that are assembled together to form a table-mounted, self-retaining retraction framework. The supporting parts hold the framework in position, and the retraction parts hold tissue.
Once you know what each part does, it becomes much easier to understand how a complete system is put together, and which items you may need to order separately.

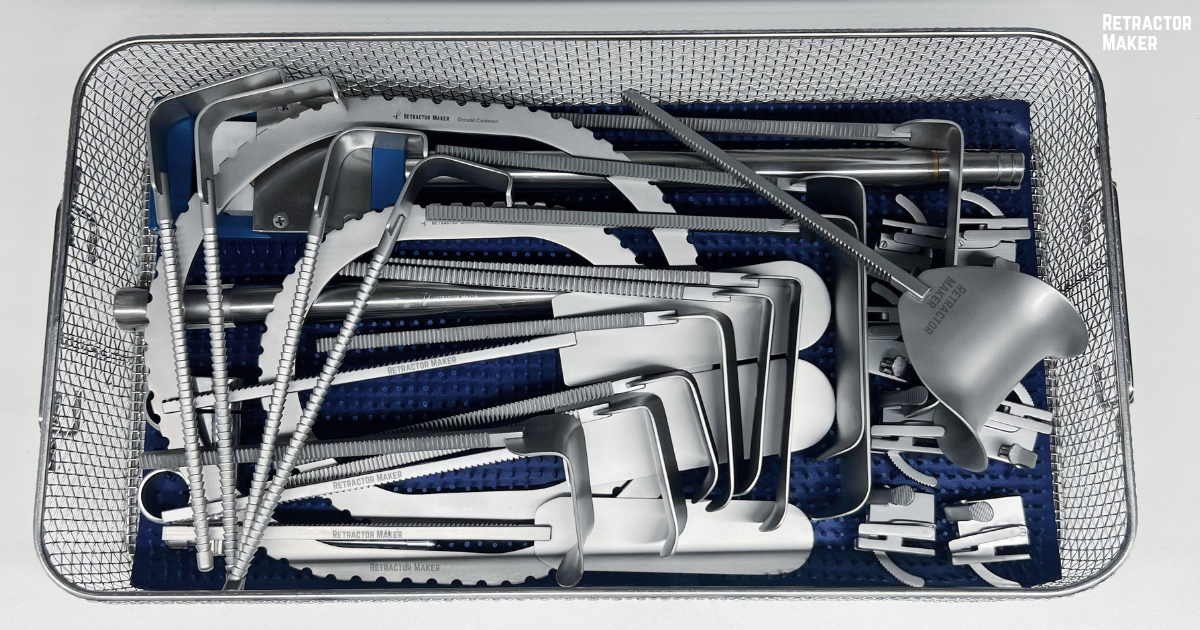

What Are the Main Parts of a Bookwalter Retractor?
- Field Post
- Horizontal Bar
- Horizontal Flex Bar
- Post Coupler
- Retractor Rings
- Ratchet Mechanisms
- Retractor Blades
The exact combination varies. Different configurations use different rings, support components and blade sets depending on the intended surgical application and on what the hospital already owns.
Bookwalter Field Post

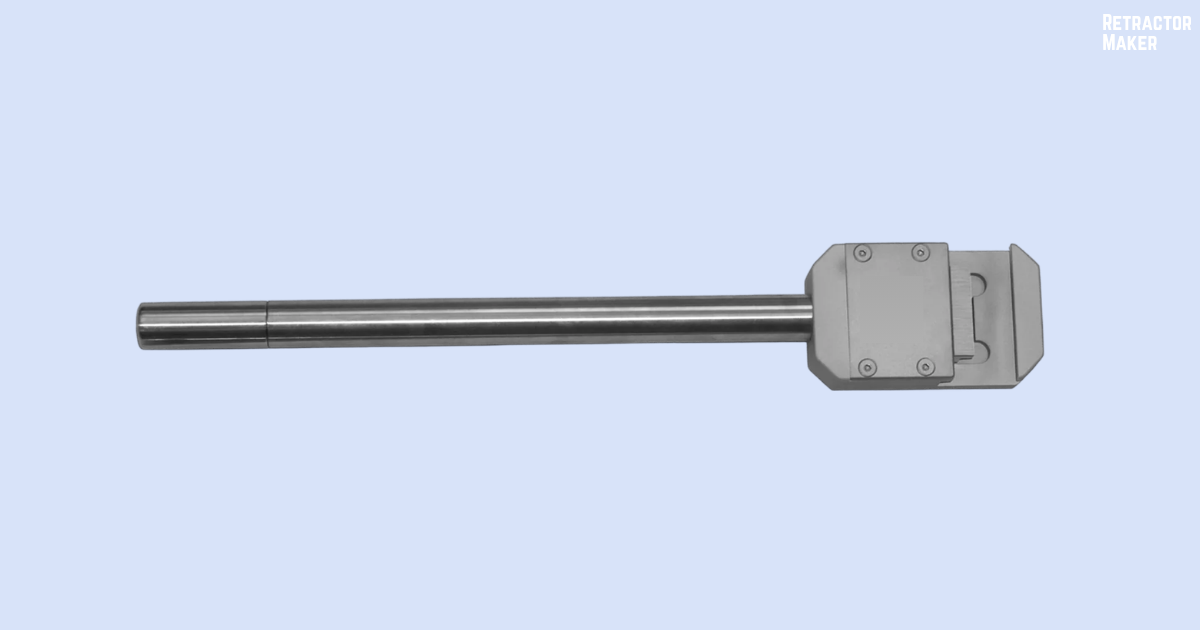

The Field Post is a supporting component. It forms part of the framework that carries the retractor ring above the operative field, connecting the table-side support to the rest of the assembly.
Bookwalter Horizontal Bar and Flex Bar

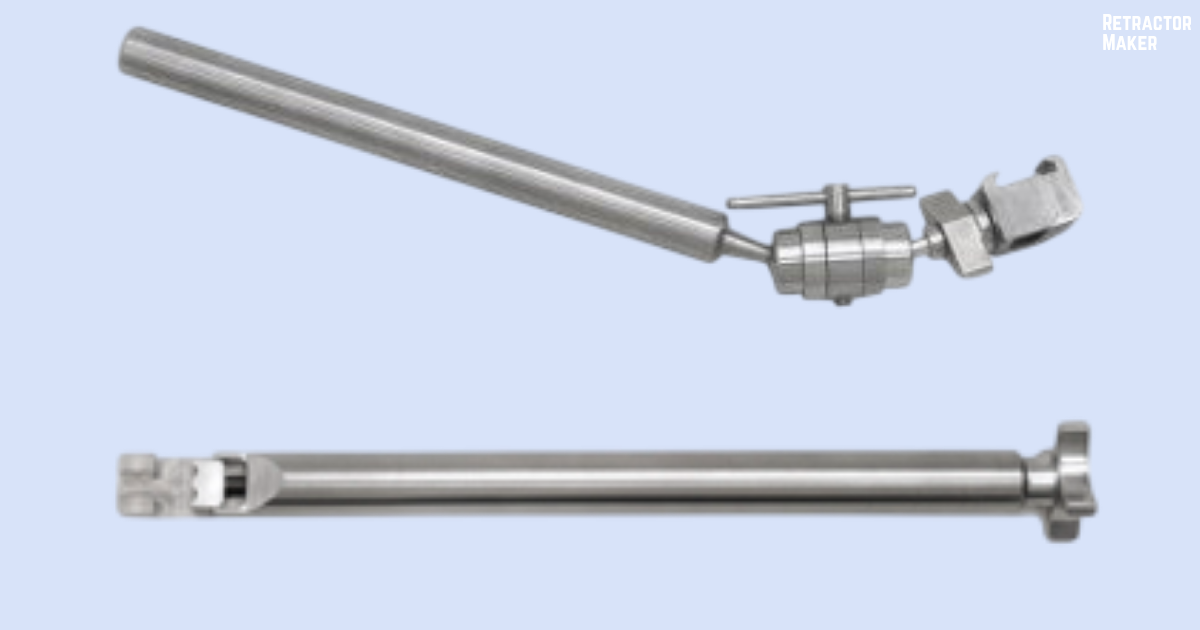

The Horizontal Bar and Horizontal Flex Bar are also supporting components. They extend and position the framework so the ring can be brought over the required area. The flex bar version allows more adjustment when the framework needs to be repositioned.
Bookwalter Post Coupler

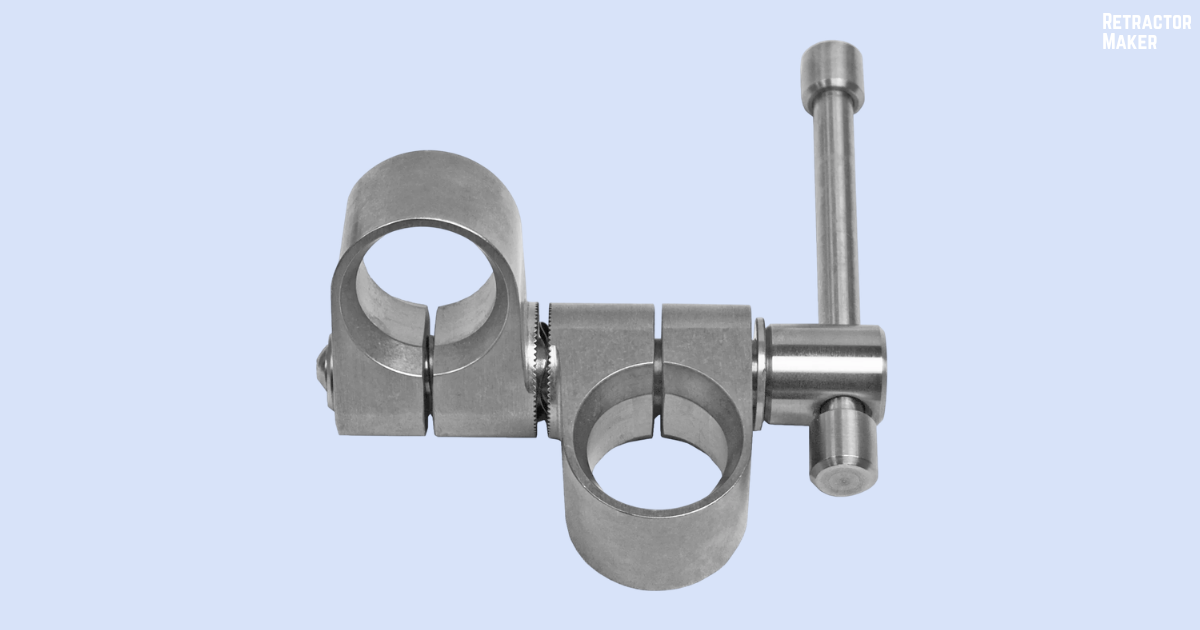

The Post Coupler joins supporting components of the system to each other. It is the connection point that lets posts and bars be locked together so the framework stays where it is set.
Bookwalter Retractor Rings
The retractor ring is the central part of the supporting framework. Blades are attached to the ring through ratchet mechanisms, so the ring provides the fixing points around the incision.

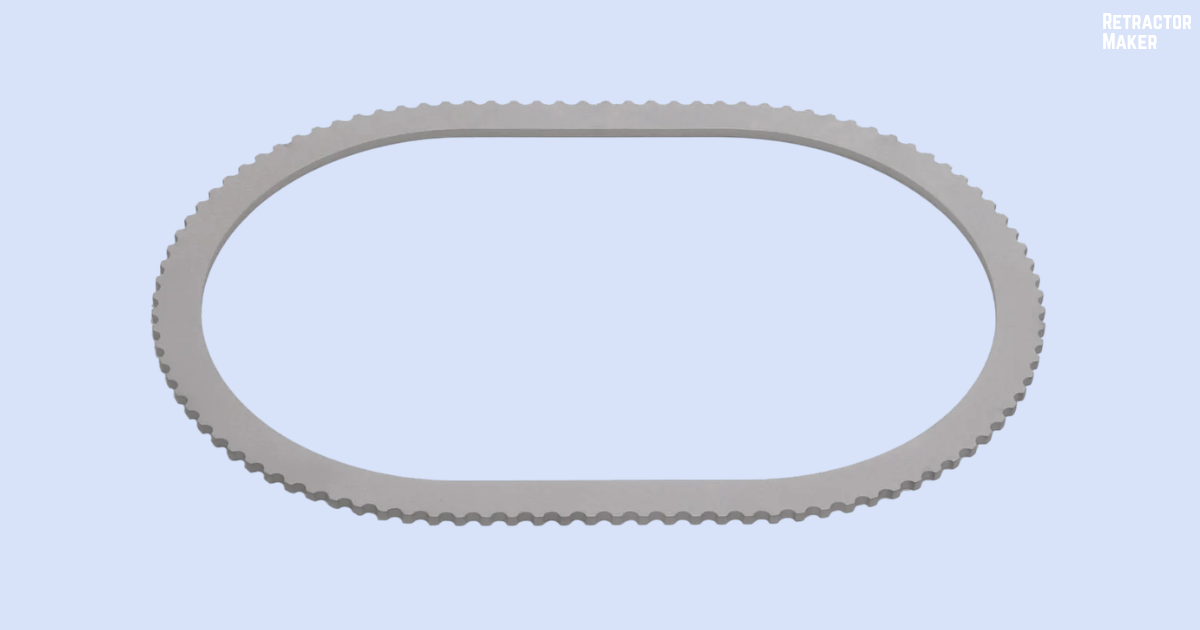

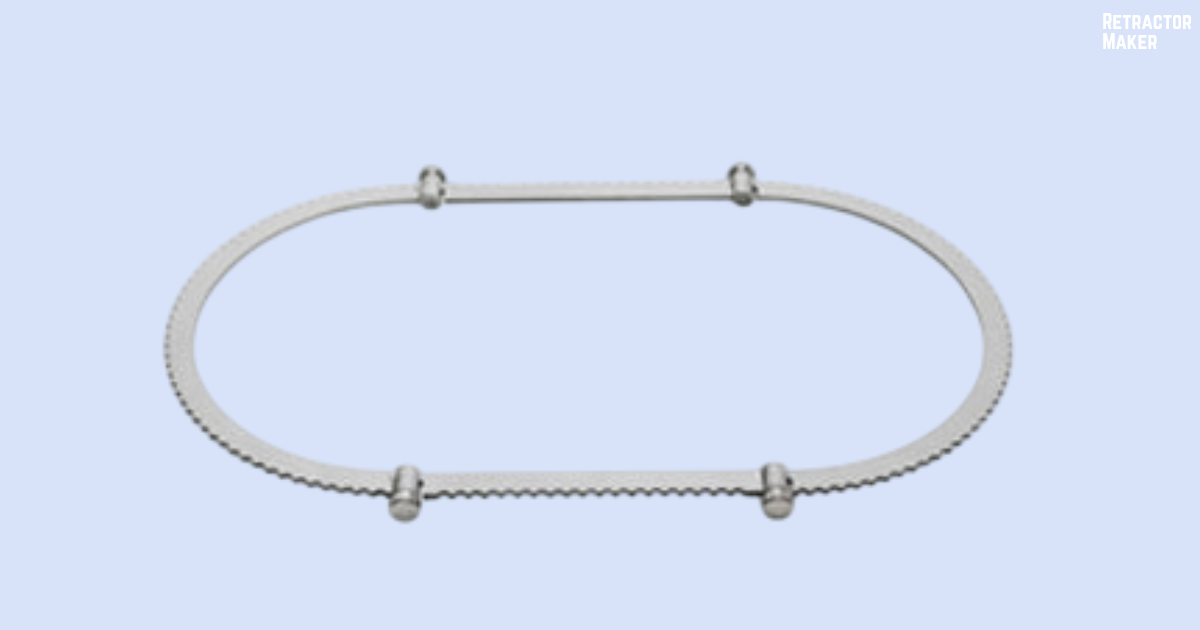

A solid ring is a single continuous piece. A segmented ring is made up of sections joined together, which allows the ring to be taken apart or reconfigured. Which type is used depends on the configuration required.
Bookwalter Ratchet Mechanisms

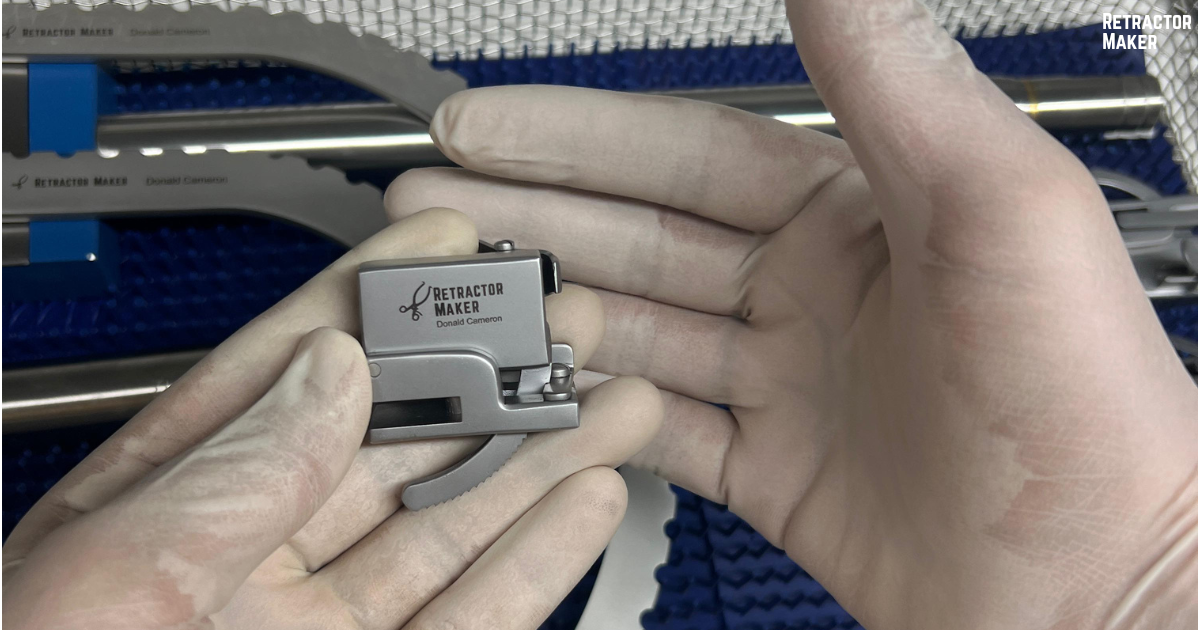

The ratchet mechanism clamps a blade to the ring and lets the blade be advanced or released in controlled steps. It is what holds the blade in the chosen position during the procedure.
Bookwalter Retractor Blades
Blades provide the actual tissue retraction. Different blade designs and sizes may be available depending on the configuration required, including Kelly blades, malleable blades, Balfour, Richardson, Deaver, Harrington and other options listed on this site. See the Bookwalter retractor blades range.
How the Bookwalter Components Work Together
- Field Post provides the supporting connection to the table-side framework.
- Horizontal Bar or Flex Bar extends and positions that framework.
- Post Coupler locks the supporting components together.
- Retractor Ring carries the fixing points around the incision.
- Ratchet Mechanism attaches to the ring and holds a blade.
- Retractor Blade engages tissue and maintains exposure.
This is a simplified representation. Actual configurations vary by system, procedure and institutional practice.
Complete System or Individual Bookwalter Parts?
- A complete Bookwalter Retractor system
- Additional blades
- Additional ratchets
- Replacement components
- Specific system components such as posts, bars, couplers or rings
The right option depends on what the hospital or surgical team already has, and what still needs to be added. Browse Bookwalter retractor parts.
How to Identify the Parts You Need
- Identify the existing Bookwalter configuration.
- Identify the component required.
- Check the required blade or support component.
- Confirm the quantity.
- Confirm compatibility with the intended system.
- Provide photographs or specifications if clarification is needed.
- Request a quotation if purchasing is required.
Compatibility should always be confirmed against the actual product information rather than assumed, because not every component fits every configuration.
| Component | Role in the system |
|---|---|
| Field Post | Supporting component within the framework |
| Horizontal Bar / Flex Bar | Extends and positions the framework |
| Post Coupler | Connects supporting components together |
| Retractor Ring | Provides fixing points for ratchets and blades |
| Ratchet Mechanism | Holds and positions a blade on the ring |
| Retractor Blade | Provides the tissue retraction |
