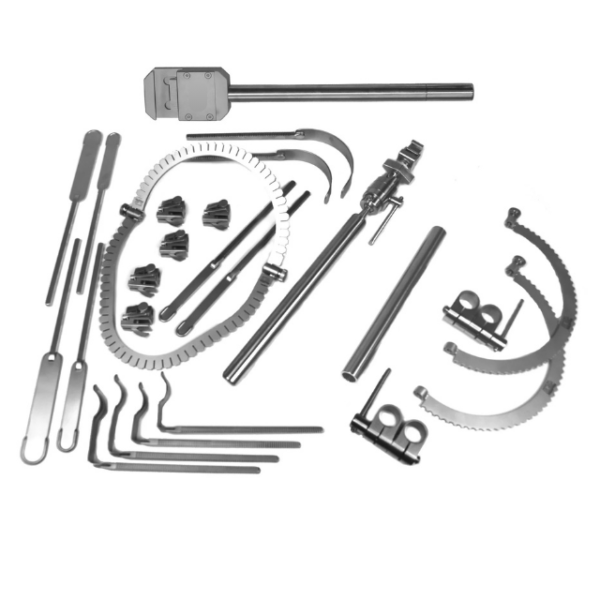

Bookwalter Rectal/Trans-Anal Surgery Retractor

The Bookwalter Rectal/Trans-Anal Surgery Retractor is a table-mounted self-retaining retractor system designed to provide stable, hands-free surgical exposure during colorectal, trans-anal, rectal and perineal procedures. Its mounting framework uses a 12″ (30 cm) field post, two 1″ diameter horizontal flex bars, a 12″ (30 cm) vertical extension bar and two 1″ × 1″ stainless steel post couplers, allowing flexible positioning of the frame relative to the operating table and patient position.

The working frame can be assembled from a 9½″ × 14½″ (23.8 × 36.3 cm) segmented perineal ring or an 8½″ (21.3 cm) internal-diameter small half circle ring, depending on the approach. Five standard multi-angle tilt ratchets attach to the ring and allow each blade to be angled and tensioned independently.

The included blade set covers a range of exposure requirements: rectal blades in ⅞″ × 3⅞″ and ⅞″ × 2⅞″ sizes, malleable blades in 1″ × 3½″, ½″ × 4″ and ¾″ × 4″ sizes, and 1″ × 3½″ Deaver blades. All components are manufactured from non-magnetic, surgical-grade stainless steel and are supplied in a dedicated sterilization box.

The system is supplied non-sterile and is reusable and fully autoclavable. It must be cleaned and sterilized according to the healthcare facility's validated procedures before use. Retractor Maker manufactures the system in Sialkot, Pakistan and supplies it directly to hospitals, surgeons and distributors.
