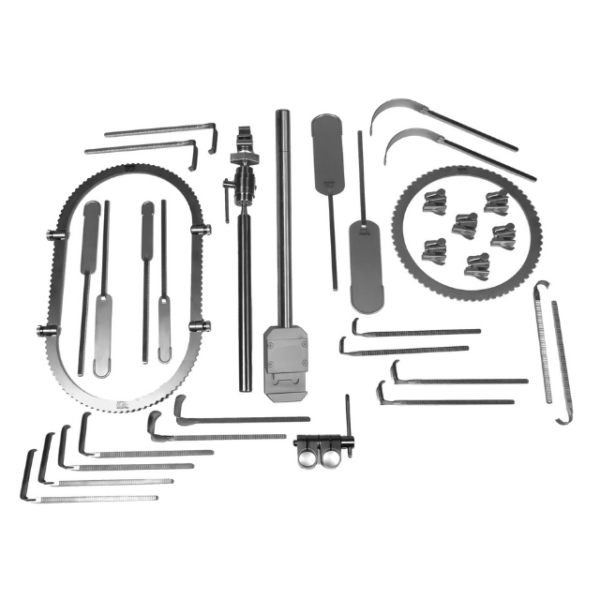

Bookwalter Small Incision Retractor System

Achieve clear visualization through limited surgical openings requires specialized holding instrumentation that maximizes field clearance without overcrowding compact operative sites. The Bookwalter Small Incision Retractor System anchors directly to standard operating table rails to provide surgical teams with hands-free, self-retaining retraction during minimally invasive open operations. By maintaining uniform, multi-directional tension on incision borders without requiring continuous manual holding from assistant staff, this setup reduces physical fatigue in the operating suite while keeping the surgical line-of-sight unobstructed.

Surgical centers, pediatric departments, and general surgery suites rely on this specialized setup within our broader Bookwalter Retractor Systems line because it solves the spatial challenges of narrow incisions. The system combines downsized ring frames with low-profile tilt ratchets and narrow-profile blades, preventing hardware bulk from interfering with delicate dissections.

Paired with a small solid round ring and a reconfigurable segmented oval ring, the assembly adapts easily to varying anatomical contours. Surgical teams can select from shallow Richardson, short Kelly, curved Deaver, Deep Rake, and shapeable malleable blades to tailor retraction depth precisely. Additional Bookwalter Retractor Blades or replacement hardware can be sourced from our Bookwalter Retractor Parts inventory as facility needs grow. Manufactured directly by Retractor Maker to standard Bookwalter-style dimensions, this complete set gives medical distributors and hospital procurement departments a high-utility, reliable surgical asset.

Key Features

• Compact Frame Geometry: Incorporates an 8½″ small round solid ring and an 8½″ × 14″ segmented oval ring designed to fit closely over confined abdominal and superficial surgical fields.

• Low-Profile Tilt Ratchets: Features six compact ratchet locks that secure firmly to the ring perimeter without creating bulky obstructions over small incisions.

• Specialized Shallow & Narrow Blades: Supplied with downsized Richardson, short Kelly, and narrow malleable blades designed for precise, shallow tissue elevation.

• Multi-Jointed Flex Bar Mounting: Includes a 1-inch horizontal flex bar that enables smooth elevation adjustments and angle positioning relative to table rails.

• Deep Rake & Deaver Options: Features multi-prong rake claws and short Deaver blades for gentle holding of delicate subcutaneous layers and fascia.

• Customized Perforated Sterilization Box: Organizes all ring segments, ratchets, mounting bars, and specialized blades inside a dedicated container for safe transport and autoclave processing.

Surgical Applications

The Bookwalter Small Incision Retractor System is designed for procedures requiring precise exposure through limited incision sizes, including:

• General Surgery: Delivers steady, hands-free retraction during open appendectomies, open inguinal hernia repairs, and femoral hernia repairs.

• Pediatric Surgery: Maintains clear visualization during open abdominal and soft tissue operations in pediatric patients.

• Endocrine & Head & Neck Surgery: Provides stable, non-obtrusive tissue elevation during thyroid, parathyroid, and specialized neck dissections.

• Breast & Superficial Surgery: Supports clean edge exposure during lumpectomies, excision biopsies, and localized soft tissue reconstructions.

• Vascular Access & Small Open Procedures: Holds tissue borders open effectively during AV fistula creations, femoral exposure, and localized soft tissue procedures.

Included Components

Component Name	Dimensions / Specifications	Quantity Included
Field Post	12″ (30 cm) vertical support rod	1
Stainless Steel Post Coupler	1″ × 1″ (2.5 × 2.5 cm) heavy-duty rail clamp	1
Horizontal Flex Bar	1″ Diameter (2.5 cm) multi-jointed arm	1
Small Round Solid Ring	8½″ (21.3 cm) Internal Diameter (ID)	1
Small Oval Segmented Ring	8½″ × 14″ (20 × 35 cm) hinged reconfigurable frame	1
Tilt Ratchets	Low-profile mechanical frame locks	6
Malleable Blades	1″ × 3½″ (2.5 × 12.5 cm)	2
Malleable Blades	¾″ × 4″ (1.9 × 10 cm)	2
Malleable Blades	2″ × 6″ (5 × 15 cm)	2
Deaver Blades	1″ × 3½″ (2.5 × 8.8 cm) curved pelvic blades	2
Kelly Blades	2″ × 1½″ (5 × 3.8 cm) shallow right-angle blades	2
Kelly Blades	1″ × 2½″ (2.5 × 6.3 cm) right-angle blades	2
Kelly Blades	1″ × 3″ (2.5 × 7.5 cm) right-angle blades	2
Deep Rake Blades	¾″ Deep × ⅔″ Wide (1.9 × 1.7 cm) multi-prong claws	2
Richardson Blades	¾″ × 2″ (1.9 × 5 cm) shallow flat-lipped blades	2
Richardson Blades	1″ × 1¼″ (2.5 × 3.1 cm) shallow flat-lipped blades	2
Richardson Blades	¾″ × 1″ (1.9 × 2.5 cm) shallow flat-lipped blades	2
Sterilization Box	Customized perforated organizer container	1

Practical Benefits for Healthcare Facilities

• Preserved Operative Working Space: Compact frame dimensions and low-profile ratchets keep the area immediately above narrow incisions clear for surgical instrumentation.

• Targeted Tissue Protection: Downsized blade profiles and shapeable malleable options prevent excessive lateral tension on fragile incision margins.

• Streamlined Central Sterile Processing: The customized perforated tray simplifies pre-operative counting, washing, inspection, and autoclaving workflows for processing staff.

• Cost-Effective System Longevity: Standardized component dimensions allow healthcare facilities to replace individual worn parts or add extra blades without purchasing complete new sets.

• Hands-Free Operating Room Efficiency: Table-anchored retraction holds tissue margins open reliably, allowing assistant surgeons to focus on primary procedural tasks rather than manual holding.

Why Choose Retractor Maker

Retractor Maker is a specialized medical device manufacturer producing surgical retractors for hospitals, surgical centers, and medical distributors worldwide.

• Small Incision Specialization: Configured specifically for procedures requiring compact frame dimensions, low-profile locks, and downsized blade profiles.

• Standard Compatibility: Manufactured to standard Bookwalter-style dimensions for seamless integration with existing hospital retractor inventory.

• Complete Component Availability: Standalone replacement blades, low-profile ratchets, and mounting hardware available separately to support long-term facility maintenance.

• OEM & Private Labeling: Dedicated manufacturing capabilities supporting private labeling and custom configuration requests for global distributors.

• Established Supply Operations: Founded in 2023 with a 50+ technical workforce, 500+ satisfied clients, a 12–16 day average lead time, and full export documentation.

Looking for additional surgical solutions?

Browse our complete catalog of surgical retractors on our main manufacturing site. For facilities performing cranial operations or delicate neurosurgical procedures requiring specialized holding arms, explore our dedicated Leyla Retractor line for neurosurgical applications.

Frequently Asked Questions (FAQs)

What is the Bookwalter Small Incision Retractor System used for?

It is a self-retaining surgical retractor system designed to provide stable, hands-free exposure during surgical procedures performed through small incisions, such as open hernia repairs, appendectomies, pediatric operations, and endocrine surgeries.

How do downsized rings and low-profile ratchets benefit small incision surgery?

Smaller ring frames and low-profile ratchets sit closer to the patient’s skin without overhang, keeping the space directly above narrow incision sites unobstructed for surgical instruments and surgeon visibility.

What specialized blades are included in this system?

The set includes 18 specialized downsized blades: shallow Richardson blades, short Kelly blades, curved Deaver blades, multi-prong Deep Rakes, and shapeable malleable blades tailored for precise, shallow tissue elevation.

Is this system compatible with standard Bookwalter-style components?

Yes. Manufactured to standard Bookwalter-style dimensions, this system is designed for compatibility with standard Bookwalter-style surgical retractor components, including field posts, ratchets, and ring frames across our primary Bookwalter Retractor line.

Can replacement blades, rings, or ratchets be ordered separately?

Yes. Healthcare facilities and supply distributors can source individual components in our Bookwalter Retractor Blades and Bookwalter Retractor Parts sections as facility needs expand.

How can I request a formal quotation or lead time estimate?

Formal B2B pricing, volume discounts, and shipping estimates can be requested through our Request a Quote page or by reaching out directly to our sales team.
