Bookwalter StrongArm GYN Surgery System
SKU: RM-BSAGYNS-1
$1,599
Free Shipping

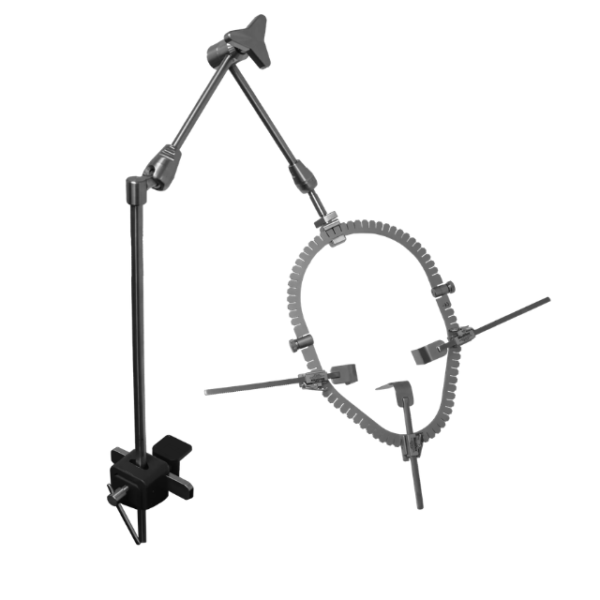

The Bookwalter StrongArm GYN Surgery System is a self-retaining retractor set configured for gynecological, vaginal and pelvic surgery. A top mount StrongArm Plus holder with rail clamp supports a 9½″ × 14½″ perineal ring with notches, and four self-retaining tilt ratchets hold vaginal lateral, vaginal posterior and Deaver blades. Manufactured from non-magnetic, surgical-grade stainless steel and supplied non-sterile in a sterilization box.
Product Description
The Bookwalter StrongArm GYN Surgery System is a self-retaining retractor system mounted on the StrongArm Plus holder. The holder is clamped to the operating table rail and supports the retracting frame, providing stable, hands-free exposure during gynecological, vaginal and pelvic surgical procedures.
The mounting system is an articulated top mount StrongArm Plus with a table-rail-compatible clamp. It carries a perineal ring with notches measuring 9½″ × 14½″ (24.1 × 36.8 cm); the notched profile allows blades to be seated at defined positions around the perineal working area.
Four standard multi-angle self-retaining tilt ratchets lock to the ring and hold each blade at the chosen depth and angle. The blade complement comprises two vaginal lateral blades at 1″ × 3″ (2.5 × 7.6 cm), one vaginal posterior blade at 1″ × 4½″ (2.5 × 11.5 cm) and two Deaver blades at 1″ × 3½″ (2.5 × 8.9 cm) and 1″ × 5″ (2.5 × 12.7 cm).
All components are manufactured from non-magnetic, surgical-grade stainless steel. The set is brand new, reusable and fully autoclavable, and is supplied non-sterile — it must be cleaned and sterilized according to the healthcare facility's validated procedures before use. The system is supplied in a sterilization box that protects and organizes the components. Retractor Maker manufactures the system in Sialkot, Pakistan and supplies it directly to hospitals, surgeons and distributors, with a minimum order quantity of one full set.
Product Specifications
| Specification | Details |
|---|---|
| Intended Use | Designed to provide stable, hands-free exposure during gynecological, vaginal, and pelvic surgical procedures using the StrongArm Plus mounting system. |
| Primary Material | Non-magnetic, surgical-grade stainless steel |
| Configuration | Complete StrongArm GYN Surgery Retractor System |
| Mounting System | Top Mount StrongArm Plus with Rail Clamp |
| Ring Configuration | Perineal Ring with Notches |
| Sterility | Supplied non-sterile (fully autoclavable) |
| Packaging | Supplied in a sterilization box |
| Manufacturer | Retractor Maker |
| Product Condition | Brand new |
| Minimum Order Quantity (MOQ) | 1 Full Set |
Component List
| Quantity | Component | Dimensions / Description |
|---|---|---|
| 1 | Top Mount StrongArm Plus with Rail Clamp | Articulated / Table Rail Compatible |
| 4 | Self Retaining Tilt Ratchet | Standard Multi-Angle |
| 1 | Perineal Ring with Notches | 9½″ × 14½″ (24.1 × 36.8 cm) |
| 2 | Vaginal Lateral Blades | 1″ × 3″ (2.5 × 7.6 cm) |
| 1 | Vaginal Posterior Blade | 1″ × 4½″ (2.5 × 11.5 cm) |
| 1 | Deaver Blade | 1″ × 3½″ (2.5 × 8.9 cm) |
| 1 | Deaver Blade | 1″ × 5″ (2.5 × 12.7 cm) |
| 1 | Sterilization Box | Protective Case |
Minimum order quantity: 1 Full Set.
Frequently Asked Questions
What is the Bookwalter StrongArm GYN Surgery System?
It is a self-retaining Bookwalter retractor set from Retractor Maker mounted on the StrongArm Plus system and configured with a notched perineal ring.
What procedures is it designed for?
It is designed to provide stable, hands-free exposure during gynecological, vaginal and pelvic surgical procedures.
What material is it made from?
All components are manufactured from non-magnetic, surgical-grade stainless steel.
Is the system supplied sterile?
No. It is supplied non-sterile and must be cleaned and sterilized according to your facility's validated procedures before use.
Is the system autoclavable?
Yes. It is reusable and fully autoclavable.
How is the system mounted?
On an articulated top mount StrongArm Plus holder with a table-rail-compatible clamp.
Which ring is included?
A perineal ring with notches measuring 9½″ × 14½″ (24.1 × 36.8 cm).
Which blades are included?
Two vaginal lateral blades 1″ × 3″ (2.5 × 7.6 cm), one vaginal posterior blade 1″ × 4½″ (2.5 × 11.5 cm) and two Deaver blades 1″ × 3½″ (2.5 × 8.9 cm) and 1″ × 5″ (2.5 × 12.7 cm), held by four self-retaining tilt ratchets.
How is the system packaged?
It is supplied in a sterilization box.
Who manufactures it and what is the minimum order quantity?
It is manufactured by Retractor Maker in Sialkot, Pakistan, with a minimum order quantity of one full set (SKU RM-BSAGYNS-1).
How to Order
- 01
Open the product you want to order
Open the product page for the Bookwalter retractor, blade or part you are interested in.
- 02
Click Order by Email or Order on WhatsApp
Choose whichever contact method is more convenient for you.
- 03
Discuss your order directly with Retractor Maker
Discuss quantity, availability, shipping and payment details directly with our team.
