Bookwalter IMA Retractor System
SKU: RM-BIRS-1
$1,499
Free Shipping

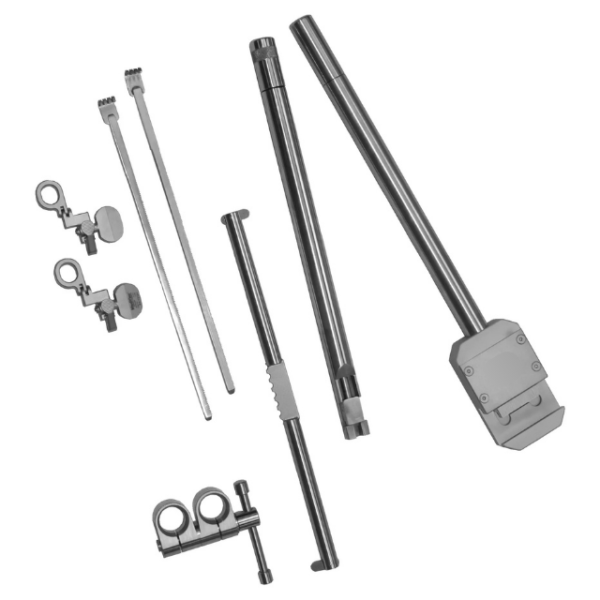

The Bookwalter IMA Retractor System is a table-mounted retractor set designed for gentle, controlled elevation of the chest wall during Internal Mammary Artery harvesting procedures. A 12″ vertical extension bar, post coupler, horizontal bar and 12″ IMA cross bar support two independently adjustable micro twist IMA ratchet mechanisms and two IMA retractor blades. All components are manufactured from non-magnetic, surgical-grade stainless steel and supplied in a sterilization box.
Product Description
The Bookwalter IMA Retractor System is a table-mounted retractor system designed to provide gentle, controlled elevation of the chest wall during Internal Mammary Artery (IMA) harvesting procedures. The system is assembled from a 12″ (30 cm) vertical extension bar, a post coupler and a horizontal bar, which together create a stable support framework attached to the operating table.
A 12″ (30 cm) IMA cross bar spans the working area and carries two IMA ratchet mechanisms with micro twist adjustment of less than 1 mm per increment. Because each ratchet is adjusted independently, the two included IMA retractor blades can be raised or lowered separately to achieve the degree of chest-wall elevation required on each side.
All components are manufactured from non-magnetic, surgical-grade stainless steel and are supplied in a dedicated sterilization box for organized storage and processing. The system is reusable and fully autoclavable.
The system is supplied non-sterile and must be cleaned and sterilized according to the healthcare facility's validated procedures before use. Retractor Maker manufactures the system in Sialkot, Pakistan and supplies it directly to hospitals, surgeons and distributors.
Product Specifications
| Specification | Details |
|---|---|
| Intended Use | Designed to provide gentle, controlled elevation of the chest wall during Internal Mammary Artery (IMA) harvesting procedures using independently adjustable ratcheting mechanisms. |
| Primary Material | Non-magnetic, surgical-grade stainless steel |
| Configuration | Complete IMA Retractor System |
| Mounting System | Vertical extension bar with horizontal bar, IMA cross bar, and dual IMA ratchet mechanisms |
| Sterility | Supplied non-sterile (fully autoclavable) |
| Packaging | Supplied in a sterilization box |
| Manufacturer | Retractor Maker |
| Product Condition | Brand new |
| Minimum Order Quantity (MOQ) | 1 Full Set |
Component List
| Quantity | Component | Dimensions / Description |
|---|---|---|
| 1 | Vertical Extension Bar | 12″ (30 cm) |
| 1 | Post Coupler | Standard |
| 1 | Horizontal Bar | Standard |
| 2 | IMA Ratchet Mechanism | Micro Twist (<1 mm) |
| 1 | IMA Cross Bar | 12″ (30 cm) |
| 2 | IMA Retractor Blades | Standard IMA Profile |
| 1 | Sterilization Box | Protective Case |
Minimum order quantity: 1 Full Set.
Frequently Asked Questions
What is the Bookwalter IMA Retractor System?
It is a table-mounted retractor system consisting of a vertical extension bar, post coupler, horizontal bar, IMA cross bar, two IMA ratchet mechanisms and two IMA retractor blades, manufactured by Retractor Maker.
What is it intended for?
It is designed to provide gentle, controlled elevation of the chest wall during Internal Mammary Artery (IMA) harvesting procedures using independently adjustable ratcheting mechanisms.
What components are included?
One 12″ vertical extension bar, one post coupler, one horizontal bar, two micro twist IMA ratchet mechanisms, one 12″ IMA cross bar, two IMA retractor blades and one sterilization box.
What material is it made from?
All components are manufactured from non-magnetic, surgical-grade stainless steel.
Is it supplied sterile?
No. The system is supplied non-sterile and must be cleaned and sterilized according to your facility's validated procedures before use.
Is it reusable and autoclavable?
Yes. The system is reusable and fully autoclavable, and is supplied in a sterilization box.
What is the SKU?
The SKU is RM-BIRS-1.
What is the minimum order quantity?
The minimum order quantity is 1 full set.
What is the price?
The price is $1,499.00 USD with free shipping.
How can I order it?
Use the Order by Email button to email info@retractormaker.com, or the Order on WhatsApp button to message us directly. You can also submit the Request a Quote form.
How to Order
- 01
Open the product you want to order
Open the product page for the Bookwalter retractor, blade or part you are interested in.
- 02
Click Order by Email or Order on WhatsApp
Choose whichever contact method is more convenient for you.
- 03
Discuss your order directly with Retractor Maker
Discuss quantity, availability, shipping and payment details directly with our team.
